Four-Lobe Knob for an M5 Hex-Head Bolt

Designer

hamppis

Designer relation

Ingen

Kategori

Parts

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-07-18 10:17

Sidst set

2026-07-19 08:20

Tags

Ingen tags fundet

Beskrivelse

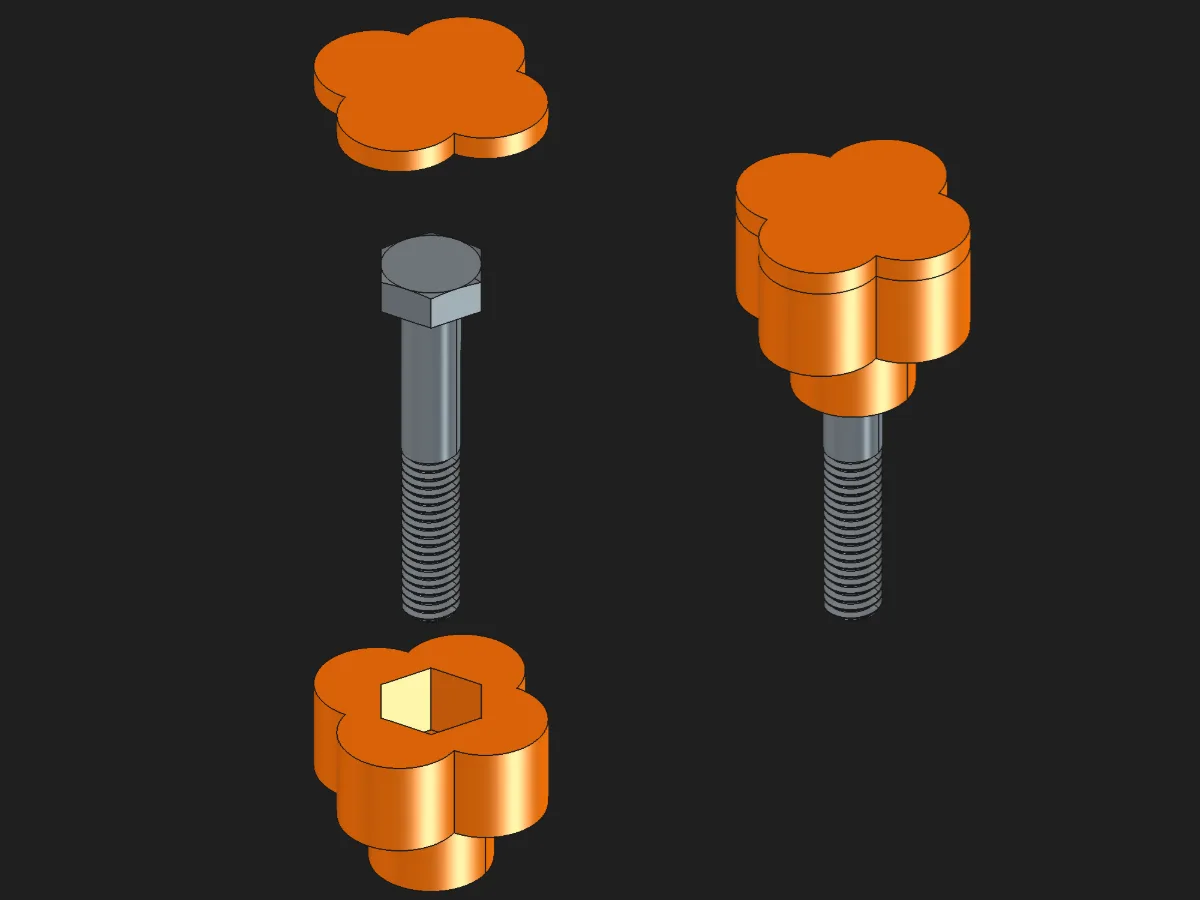

Four-Lobe Knob for an M5 Hex-Head Bolt A simple four-lobe knob designed to fit an M5 hex-head bolt. The larger grip makes the bolt easier to tighten and loosen by hand without tools. Suitable for adjustable fixtures, clamps, jigs, machine accessories and other projects that require frequent manual adjustment. For best results, print the clips flat on the build plate using the original STL orientation. Dimensions Maximum assembled diameter: 20 mm Assembled knob body height: 10 mm Neck diameter: 10 mm Neck height: 7 mm Total assembled height: 17 mm Note The same version of this model is also available on Printables. For documentation, printing instructions, updates, and the changelog, visit: https://www.printables.com/model/1779854-four-lobe-knob-for-an-m5-hex-head-bolt License Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) You are free to: Share — copy and redistribute the model in any medium or format Adapt — remix, transform, and build upon the model Use commercially Under the following terms: Attribution — You must give appropriate credit to the original author ShareAlike — If you modify the model, you must distribute your contributions under the same license This model is provided as-is, without warranty. Use at your own risk.
