Clip-A-Cap (Modular Hat Clip + All Accessories)

Designer

Tryspire

Designer relation

Ingen

Kategori

3D Printers > Accessories

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons — Attribution — Noncommercial — Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

None

Først set

2026-07-17 10:32

Sidst set

2026-07-17 10:32

Tags

clip modular cap hat accessory assistivetechnology assistive clipacap tryspire

Beskrivelse

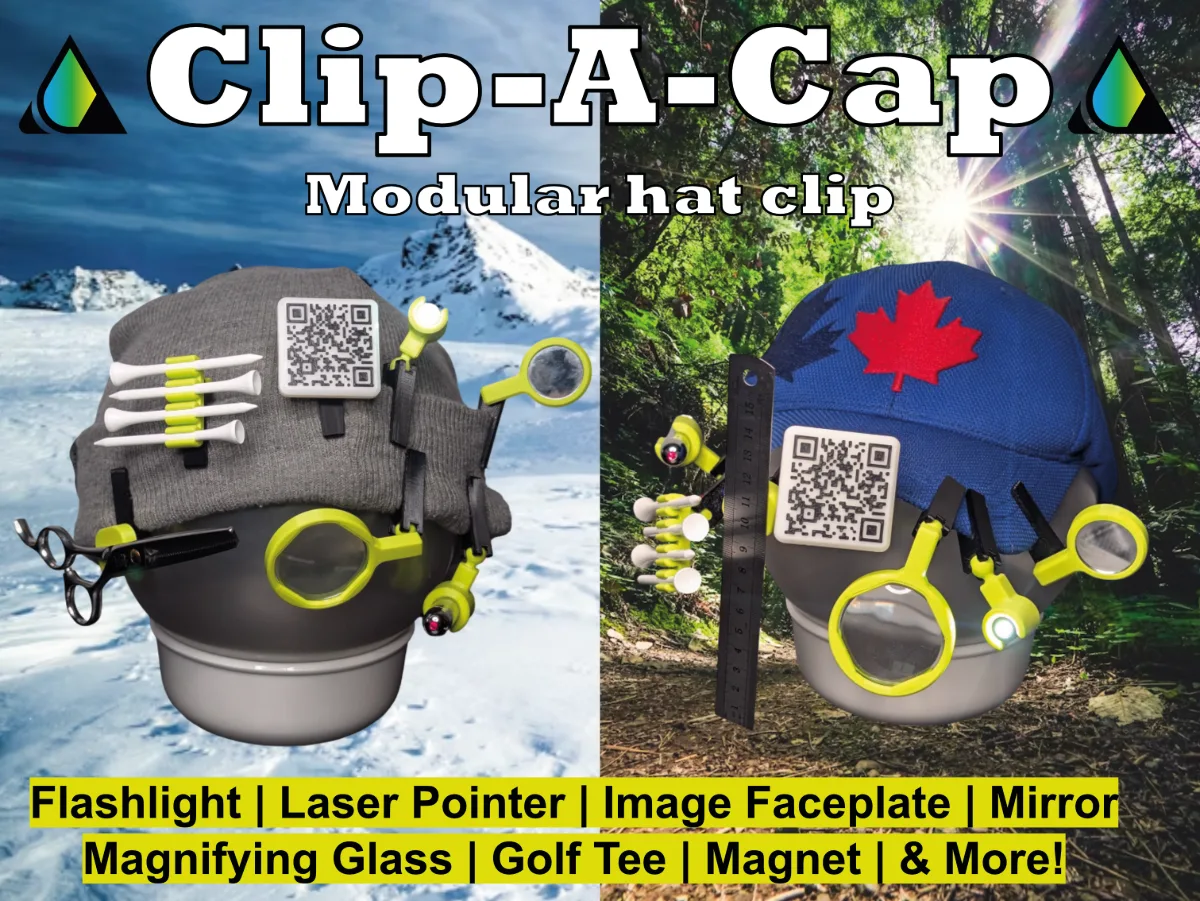

Here's the full description with all em dashes removed: Clip-A-Cap is a Swiss Army knife for your hat: 7 snap-on tools, one base clip, zero hands needed. Clip-A-Cap is a modular mounting platform that transforms almost any headwear (baseball caps, straw hats, thick winter beanies, and more) into a versatile, hands-free tool station. Built on a specialized "Claw & Ball" friction-fit system , the possibilities for customization are virtually endless. Whether you're working, reading, or exploring, Clip-A-Cap keeps everything within reach and your hands completely free. This upload combines the full system in one place: the Base Hat Clip and all seven current attachments. 🧢 How the System Works - Print the Base Hat Clip first. It's the foundation of the entire system and clips onto the brim of your hat. - The tip of the base clip features a technical-grade claw that snaps onto any attachment's 9.7mm ball joint . - Print the Base Clip in PETG and every attachment in TPU 95A . Mixing materials this way prevents the wear that happens when two identical plastics rub together, so the joint stays tight over time. - At the 9.7mm spec, attachments snap in easily but hold firmly at whatever angle you set them. 1 Base Hat Clip, The Foundation The essential clip required to host every attachment in the system. Print Settings - Filament: PETG - Resolution: 0.2mm - Infill: 30% (Gyroid recommended) - Supports: Yes (for mounting points) - Rafts: No More printing instructions and individual file: 2 Golf Tee Holder Keep up to four tees indexed and ready on your hat brim for quick access on every hole. Four precision slots hold standard wooden or plastic tees securely, even mid-swing. STEP file included to adjust the friction-ribs for non-standard tee diameters. Print Settings - Filament: TPU 95A - Walls: 3 - Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: 3 Image Faceplate A blank canvas for logos or QR codes to link to your portfolio or socials on the move. Two-part system: - Image Plate (PETG) : the rigid canvas for designs, logos, QR codes - Plate Holder (TPU 95A) : the flexible frame that grips the plate and snaps onto the base clip Fully resizable in your slicer/CAD software. STEP files included for both parts. For QR codes, use high-contrast colors (black on white). Print Settings - Filament: TPU 95A (holder) / PETG (plate) - Walls: 3 | Resolution: 0.2mm (0.1 to 0.12mm for fine text/QR) | Infill: 20 to 30% | Supports: No More printing instructions and individual file: 4 Magnetic Dock A print-in-place magnetic staging area for screws, bits, and nails, so there's no more hardware in your teeth! Fully encapsulates a stack of three magnets for a clean finish with no glue required. Required hardware: 3x neodymium magnets, 20mm diameter x 2mm thick Assembly, the "Pause-and-Drop" method (important!): - Program a Pause at Height (or Color Change) in your slicer just before the "roof" of the magnet cavity begins. - Drop the three magnets into the cavity during the pause, then resume the print to seal them in forever. - Pro tip: if your print head is magnetic, use a dab of glue stick or painter's tape to keep magnets seated until covered. Print Settings - Filament: TPU 95A - Walls: 3 | Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: 5 Laser Pointer Mount A hands-free pointing tool for pros and teachers, or a visual feedback device for neck rehab exercises (cervical proprioception/tracking). Designed around a common "pen-style" laser. STEP file included to modify diameter for your own device. Reference laser used: Petco brass laser pointer (cat toy style) Print Settings - Filament: TPU 95A - Walls: 3 | Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: 6 Flashlight Mount Turn your small torch into a powerful, adjustable headlamp, perfect for hands-free work in dark spaces (mechanics, plumbers, DIYers, camping, roadside repairs). STEP file included to adjust ring diameter for your flashlight. Print Settings - Filament: TPU 95A - Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: 7 Magnifying Glass Mount Hands-free magnification for jewelry, electronics, model painting, or reading fine print, also useful as a low-vision assistive aid. Designed around a common pocket lens (1.65" double convex). STEP file included to adjust for your own lens. Print Settings - Filament: TPU 95A - Walls: 3 | Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: 8 Mirror Mount Gain situational awareness with a rearview mirror that stays in your peripheral vision, great for walkers, hikers, and runners on multi-use paths. Fits a standard 1" (25.4mm) round mirror. STEP file included to adjust for different mirror sizes. Print Settings - Filament: TPU 95A - Walls: 3 | Resolution: 0.2mm | Infill: 30% | Supports: No More printing instructions and individual file: ⚠ LEGAL AND SAFETY NOTICE NOT A MEDICAL DEVICE: Clip-A-Cap is an experimental accessory and adaptive mounting system. it has NOT been evaluated, approved, or endorsed by any medical or regulatory body (such as Health Canada or the FDA). references to rehab or low-vision use (e.g. the Laser Pointer Mount for neck proprioception exercises, the Magnifying Glass Mount for low-vision tasks) are provided as informational use-case ideas only. this system is not intended to diagnose, treat, cure, or manage any medical condition, and should not be used for medical purposes without first consulting a qualified healthcare provider. USER IS THE MANUFACTURER: by downloading these files, you acknowledge that you are the manufacturer of the physical object. you assume 100% responsibility for material selection, print settings, assembly, hardware installation, and safety testing of your finished piece. NOT SAFETY EQUIPMENT: the Base Hat Clip and all attachments are accessories only. none of these designs are a substitute for certified safety gear, and this system should never be used in place of a helmet or other head protection where one is required. CHOKING HAZARD: every piece in this system is a small part. keep away from children. ATTACHMENT-SPECIFIC RISKS: - Magnetic Dock: contains encapsulated neodymium magnets. keep away from pacemakers, credit cards, and sensitive electronics. once printed, the magnets cannot be removed. - Laser Pointer Mount: always follow laser safety protocols. never point the laser into your own eyes or anyone else's. - Flashlight Mount: be mindful of heat buildup from high-powered flashlights, which can soften or deform the printed material. - Magnifying Glass Mount: viewing through the lens in direct sunlight can pose a fire hazard or cause eye damage if used improperly. - Mirror Mount: ensure the mirror is securely attached and does not obstruct your forward vision. maintain full awareness of your surroundings at all times. - Golf Tee Holder & Image Faceplate: ensure attachments are securely seated and do not create a snag hazard. CONSULT A PROFESSIONAL: if you have concerns about whether Clip-A-Cap or any of its attachments are appropriate for your specific situation, consult with a professional before using it. TERMS OF USE: downloading these files constitutes your agreement to the full Tryspire Terms of Use and Disclaimer: https://www.tryspire3d.com/disclaimer-and-terms-of-use Support and Updates this design is a work in progress. if you would like to support future Tryspire projects, consider visiting Ko-fi. Website: https://www.tryspire3d.com/ Ko-fi: https://ko-fi.com/tryspire3d Instagram: https://www.instagram.com/Tryspire3d/ TikTok: https://www.tiktok.com/@tryspire3d Youtube: https://www.youtube.com/@Tryspire3D
