ACE GEN 2 Kobra X print head service jig fixture and parts tray

Designer

BrianC

Designer relation

Ingen

Kategori

3D Printer > 3D Printer Accessories

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-07-16 19:00

Sidst set

2026-07-16 19:00

Tags

kobra x jig kobra x fixture kobra x tool head kobra x print head kobra x service kobra x nozzle kobra x hotend kobra x parts tray kobra x service tray ace gen 2 fixture ace gen 2 jig ace gen 2 service AnycubicKobraX KobraXCreatorSeason ShowYourKobraXPower ace gen2 jig ace gen2 fixture ace gen2 service toolhead jig tool head jig

Beskrivelse

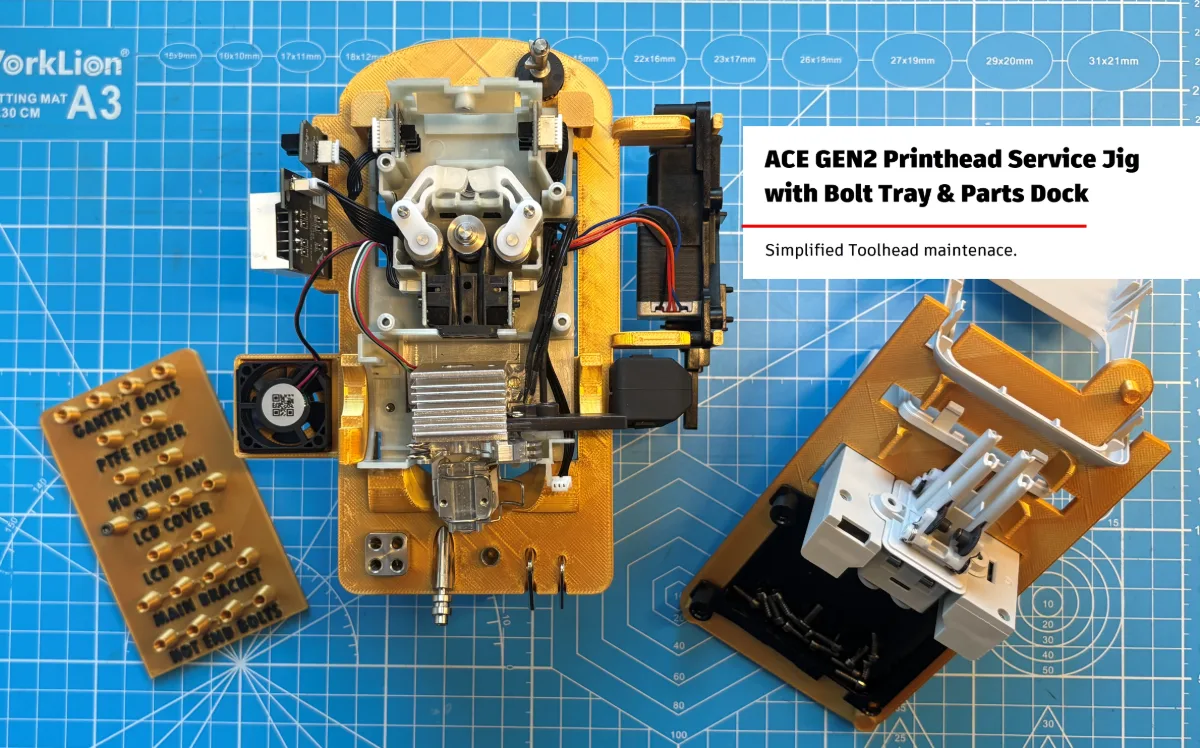

WHAT IS THIS? This is the original service jig for the ACE GEN2 Kobra X printhead. Designed for easy manipulation and articulation during toolhead maintenance. This is my creation offered to the Kobra X community. 100% measured by hand, designed from scratch in TinkerCAD. IMPORTANT: Watch HOW TO VIDEO before printing! https://youtu.be/8BA-oj2-qxQ ASSEMBLY VIDEO https://youtu.be/2dG6pABhhN8 NEW: Full disassembly, cleaning and assembly video https://www.youtube.com/watch?v=4IvlbJ3bDQE WHO IS THIS FOR? -People with OCD -People who want a stable platform for servicing the ACE GEN2 printhead -Ideal for clog maintenance -Ideal for routine maintenance FACT: Download and print this now, because if you get a clog later, then you can't print it. Better to have it and not need it, than to need it and not have it. WHY IS THIS RAD? - Have both hands available, full open view. - Rotate 360 without fumbling with the assembly. - Articulate printhead with ease. - Minimize touching cables, harnesses, solder joints and sensors. - 60mm leg height, elevates printhead prevents mainboard from hitting desk when installed. - Bolt Tray screw organizer included, customizable in Slicer (separate .3mf). - Convenient storage kit (download the Storage Tray Back). - Sufficient for most basic service scenarios - clog clearing, lubrication, inspection . FITMENT - ALLOW ALL PARTS TO COOL BEFORE FITTING - DO NOT FORCE ANYTHING. - If the fit is too tight make some manual adjustments. - Clean up the edges with a razor blade or sandpaper. - I am not responsible if you damage your printhead. I'm the original creator of this jig. Feel free to personalize. NO REMIXING PLEASE UPDATES / CHANGE LOG I review everyone's feedback! While I can't please everyone, I try to make changes to improve reliability and feature set of the jig. 06/23/2026 - +Bolt Tray Greek, thank you Eurik 06/22/2026 - +Bolt Tray Spanish, thank you PrintsnCode 06/19/2026 - +Bolt Tray Portuguese, thank you Moshinho 06/17/2026 - +Bolt Tray Chinese, thank you Spring! 06/16/2026 - +Bolt Tray German, thank you EMI ! 06/15/2026 - All files consolidated to one .3mf file. 06/12/2026 - LEGS: 50mm legs removed. Only 60mm legs provided. Insertion peg scaled up 1%. Insertion peg chamfered. 5/19/2026 - Main Jig1.02 .3mf uploaded , fixes described below -Side hanger hook too thin, could break if nudged. 2.5x thicker hook and widened gap for more play. -Widened mounting notch for LCD display, minor fix -Rolled edge to fan mount, minor fix -Took sharp edge off half moon under nozzle, minor fix 5/19/2026 - Storage Tray Back .3mf added for download 5/18/2026 - Customizable Bolt tray (separate .3mf added). Customize font, size, color, etc (in Slicer) 5/17/2026 - Screw tray is now included in the 3mf file. Download the latest .3mf file and print separately if needed. 5/17/2026 - Main jig edits: Cam holder is now full thru hole, LCD display holder and fan holder tolerances adjusted. Thank you for your interest and support! Use COUPON CODE "BC3D " for $15 OFF Anycubic products https://store.anycubic.com/?ref=BC3D
