BETAFPV Pavo20 Pro Li-Po Battery Protection Cage

Designer

yekta

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Creative Commons Attribution

$ ↺

Attribution påkrævet.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

fpv lipo protection Battery drone cage drone battery pavo20 pro BETAFPV 3s lipo 3s 3s battery lava lava battery betafpv battery

Beskrivelse

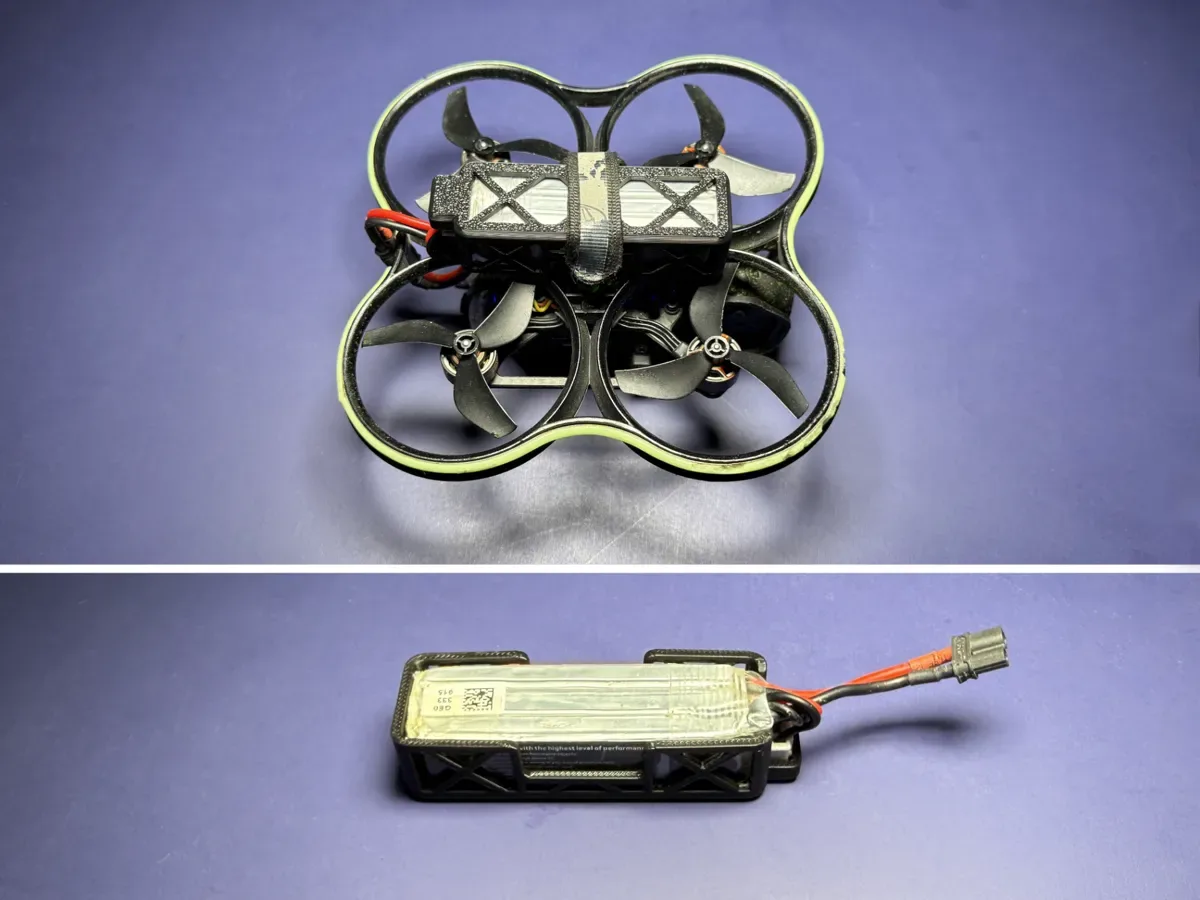

I made this cage to protect BETAFPV LAVA 550 mAh 3S Li-Po batteries mounted on Pavo20 Pro. I was going to create a part to hold the annoying 3s balance cable in place but searched here and found a cage made by @DieselSLC which has a balance cable holder already (model link). Then I wanted to create cages for multiple different batteries so I created my own from scratch. Measured everything myself and improved the parts I thought could be improved. I used variables when modeling for easy edit-ability. There are 2 versions, one has 2mm walls, one has 2.4mm walls. I use the 2.4mm one for TPU prints. Tried to find a good balance of durability and weight (2mm wall version is about 5.8 grams). Boost Me (for free) You have my permission to improve the model, share it, produce it, sell it. Just don't re-upload it without any changes (basically don't have malicious intent). I added the SolidWorks and STEP files so that you can edit easier. If you are using Onshape, you can copy and edit the entire project using the link below. Boost → Model Link on Onshape ← Check out my other battery cages: GNB 3S 550 mAh LiHV CNHL MiniStar 3S 550 mAh LiHV
