A1 Maintenance Tools & Box (Lubing & PTFE Tube)

Designer

yekta

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

a1 bambu lab a1 lubing 维护 bambulab a1 toolbox Tool toolaccessory accessory repair magnetic magnetic box PTFE PTFE tube bambu a1 a1 accessory bambu a1 accessory toolkit x y z box container Gridfinity organizer organization garage clean cleankit clean kit cleaning A1 MINI bambulab a1 mini Bambu Lab A1 Mini a1 tools A1 maintenance a1 mini tools A1 mini maintenance

Beskrivelse

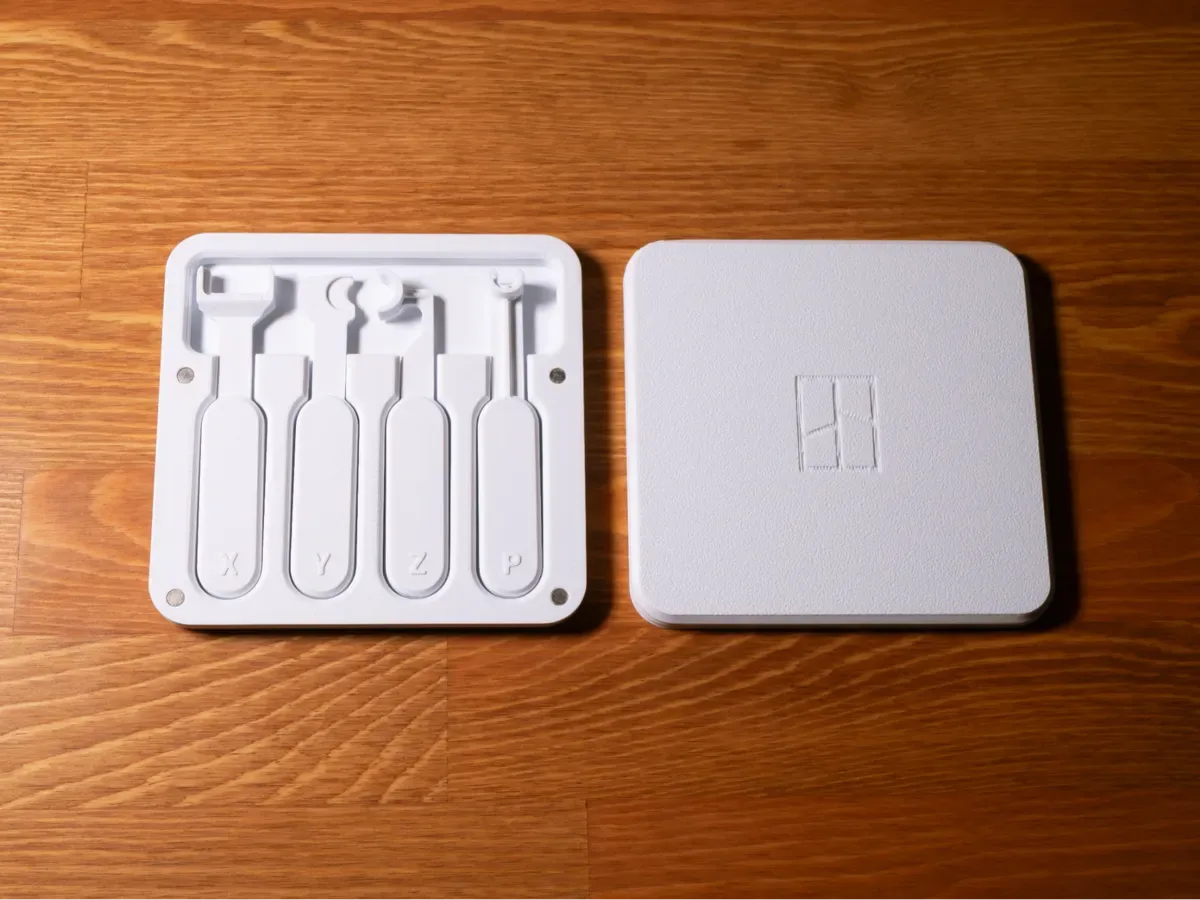

Check out my newly released model: Backpack Hanger Shower Wall Hook ---------------------------------------------------- These are tools for maintaining your Bambu Lab A1. There are 4 tools, 3 of which are for lubing the printer's X, Y, and Z axes. The one marked with P is for taking out the PTFE tubes. There is a magnetic box for keeping them clean. The box itself is optional. You can print all, with the bottom part of the box only or just the maintenance tools. I've uploaded profiles for all of them. Non-printed Part Requirements: There are two versions, one using 4×2mm magnets and one using 6×2mm magnets. For the one using 4×2mm magnets: 4×2 mm circular magnets → Quantity: 16 → For the tools, the bottom part of the box and the top part of the box For the one using 6×2mm magnets: 6×2 mm circular magnets → Quantity: 16 → For the tools, the bottom part of the box and the top part of the box You also need super glue to glue the magnets in place. Boost Me (for free) I've shared the Onshape link below so that you can edit the model. The only reason this model has a standard license is that Makerworld-exclusive models are required to have it. Boost Do you want to sell 3D prints of my designs or support my work? Join my commercial membership on Patreon 🎉 → Model link on Onshape ← Dimensions: 4×2 mm magnet version: Case - Top & Bottom: 101 × 98 × 14.4 mm Case - Bottom Only: 101 × 98 × 7.2 mm 6×2 mm magnet version: Case - Top & Bottom: 111.2 × 101.8 × 14.4 mm Case - Bottom Only: 111.2 × 101.8 × 7.2 mm Note: You can remove the tools easily by pressing on the letter. That will lift the tool like a seesaw. Here is my own magnet configuration. Feel free to go with whatever works for you. You can swap all polarities in the picture and achieve the same result (all South with North and all North with South). The head section of the tools are taken from the awesome models of @sderrick42 (Shane), all of the rest is designed by myself. Here is the link: Link to Shane's tools. Check out my other accessories: Toothpaste Squeezer Mini Bag Clip v2 Cable Organizer v2 Belt Hanger | Belt Hook Book Page Holder Cable Organizer | Cable Clip Loud Whistle | 3 Sizes | 100 dB+ Mini Desktop Trash Bin - Fast Print (Vase Mode) Pistachio Cup (Ribbed) Clamshell Box - 20+ Variants - 33gr Filament 3D Filament Sample Card & Stand
