Imp / Gnome Lamp

Designer

Westtech_3D

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

imp gnome Christmas xmas lamp LED lightbox deco decor decoration

Beskrivelse

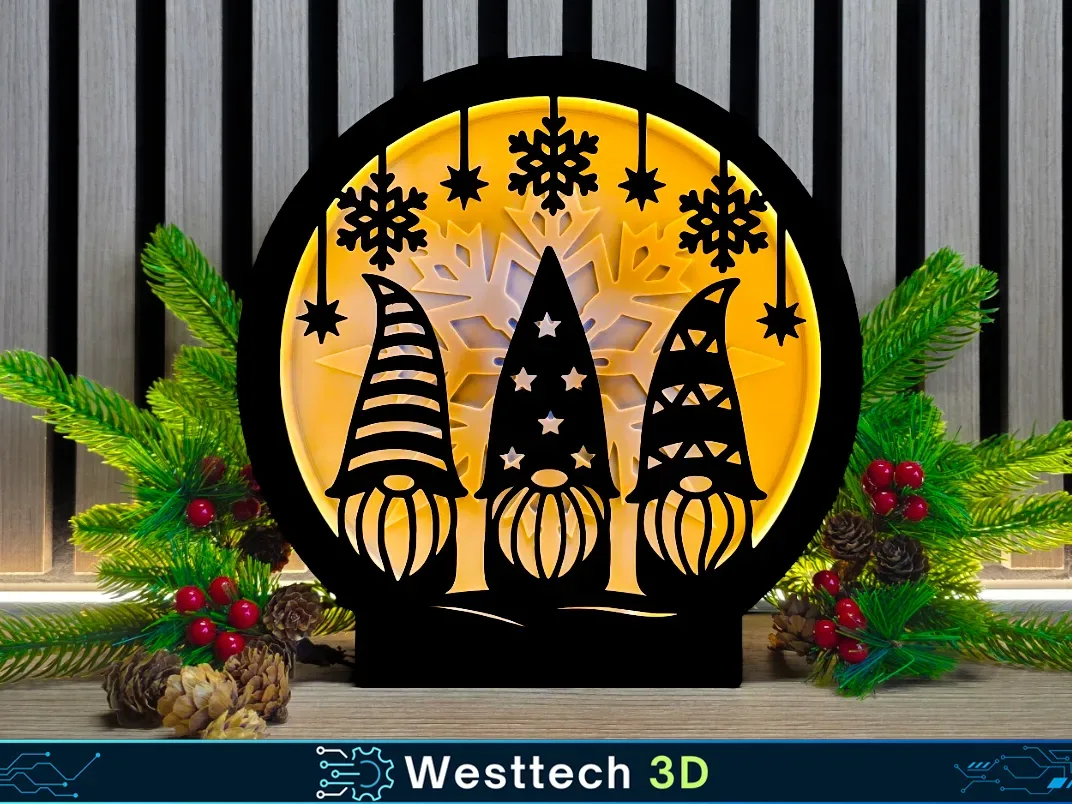

Gnome Lamp – Stylish & Easy to Print Yourself Here you will find a stylish lamp that you can easily print yourself – perfect for an atmospheric ambiance at home. Two variants are available: 🧷 Variant 1: Glued 🔩 Variant 2: Screwed ______________________________________ 🛠️ Recommended Print Settings: 🔲 Main Part Optimal Layer Height: 0.16 mm for fine details Time-saving Alternative: up to max. 0.20 mm 🪵 Back Panel with Diffuser Recommended: 0.20 mm Maximum: 0.24 mm This ensures a particularly soft, pleasant light – ideal for a cozy atmosphere. 💡 Note on the Back Panel: The back panel is deliberately a bit looser, as I glue it before shipping. If you want a tighter fit, you can enlarge the back panel in the slicer by 0.5% to 1% – just try what works best for you! 🔧 Details for the Glued Version LED Holder: This should be fixed with some plastic glue. LED Strips: Simply insert them – they usually hold well due to the adhesive surface on the back. The printed support prevents the strips from detaching when heated (e.g., by COB LEDs). Recommended LED strip length: at least 74 cm 🔩 Details for the Screwed Version 🔩🪛 Required Accessories: 5x M3x6 heat set inserts 5x M3x12 screws 🔧 Tip: Please do not overtighten the screws to avoid damage. Melt in 5x M3x6 threaded inserts You need 5x M3x6 heat set inserts & 5x M3x12 I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback! Happy Printing! Membership Information on commercial licensing on MakerWorld Join
