2" Aiyima Desktop Pipe Speaker

Designer

DonKracho

Designer relation

Ingen

Kategori

Other

Licens

Creative Commons Attribution NonCommercial Creative Commons - Attribution - Non-Commercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-07-10 12:25

Sidst set

2026-07-11 08:20

Tags

Aiyima desktop speakers speaker

Beskrivelse

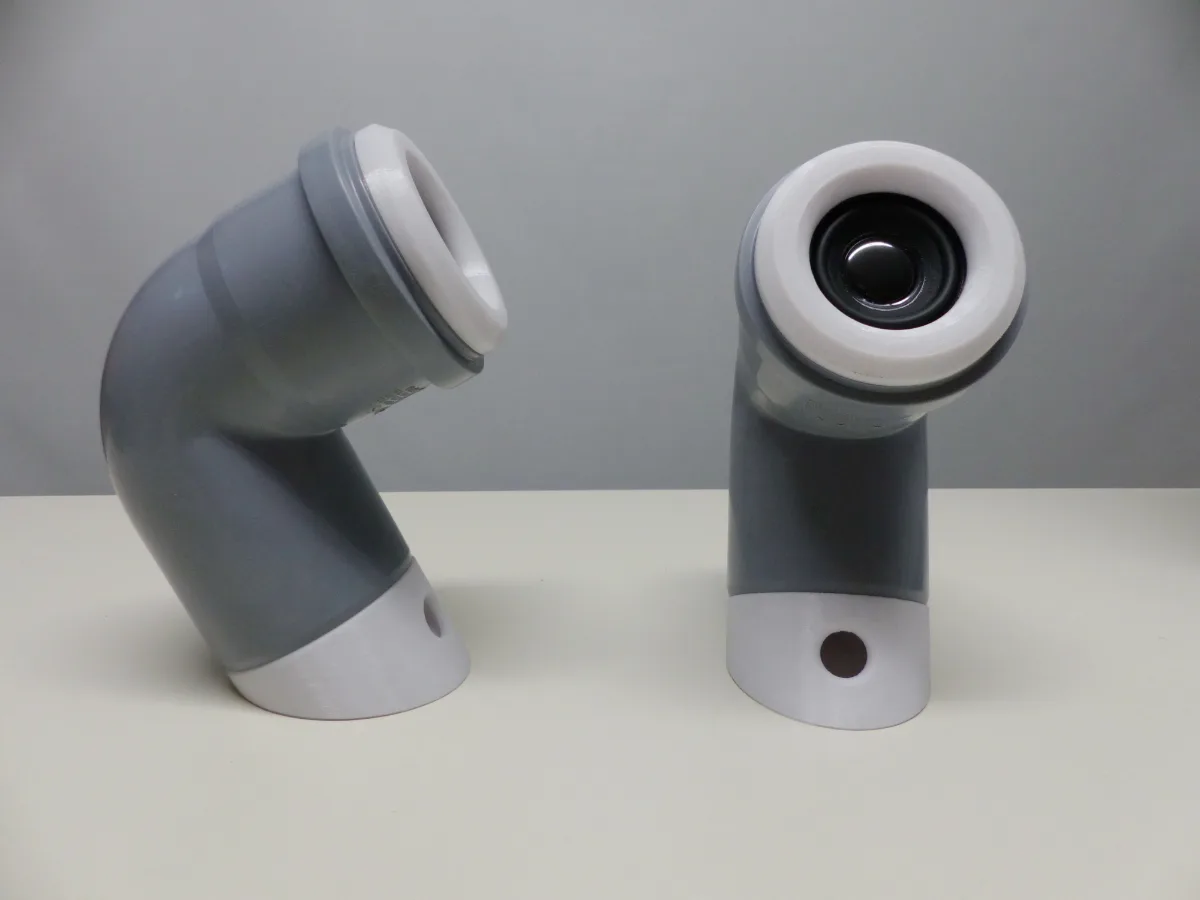

This is a simple model for testing a pair of Aiyima 2" speakers. These have a massive dip at 1.1 KHz and require some DSP corrections. To be honest, I can not recommend these speakers and building a housing for them at all as long as you do have these speakers already. Knowing the bad frequency response, I did not want to waste much CAD and printing time for a housing and just designed 2 adapters for a 87° DN75 pipe. The hole in the foot isn't a real br tube but helps the speakers to get a little more punch and midrange. You will have to fill the pipe wich some polyester wadding to avoid resonances. Some filter suggestions calculated by REW: Notes:Aiyima 2" DN75 SPK automatic Configurable_PEQ Number Enabled Control Type Frequency(Hz) Gain(dB) Q Bandwidth(Hz) TargetT60(ms) 1 True Auto PK 230.0 -10.00 2.32 99.14 2 True Auto PK 834.0 3.40 1.00 834.0 3 True Auto PK 1170 7.00 2.92 400.7 4 True Auto PK 2769 -7.50 1.54 1798 5 True Auto PK 5351 -6.00 3.82 1401 If your amplifier has no DSP you may use the Equalizer APO for testing. With these PEQ filters applied the speakers do sound much better in the nearfield of a desktop but still may need a subwoofer. Happy printing and hearing.
