Drawer Grid Configurator

Designer

piodeer

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

grid drawer Gridfinity parametric custom IKEA malm container configurable baseplate

Beskrivelse

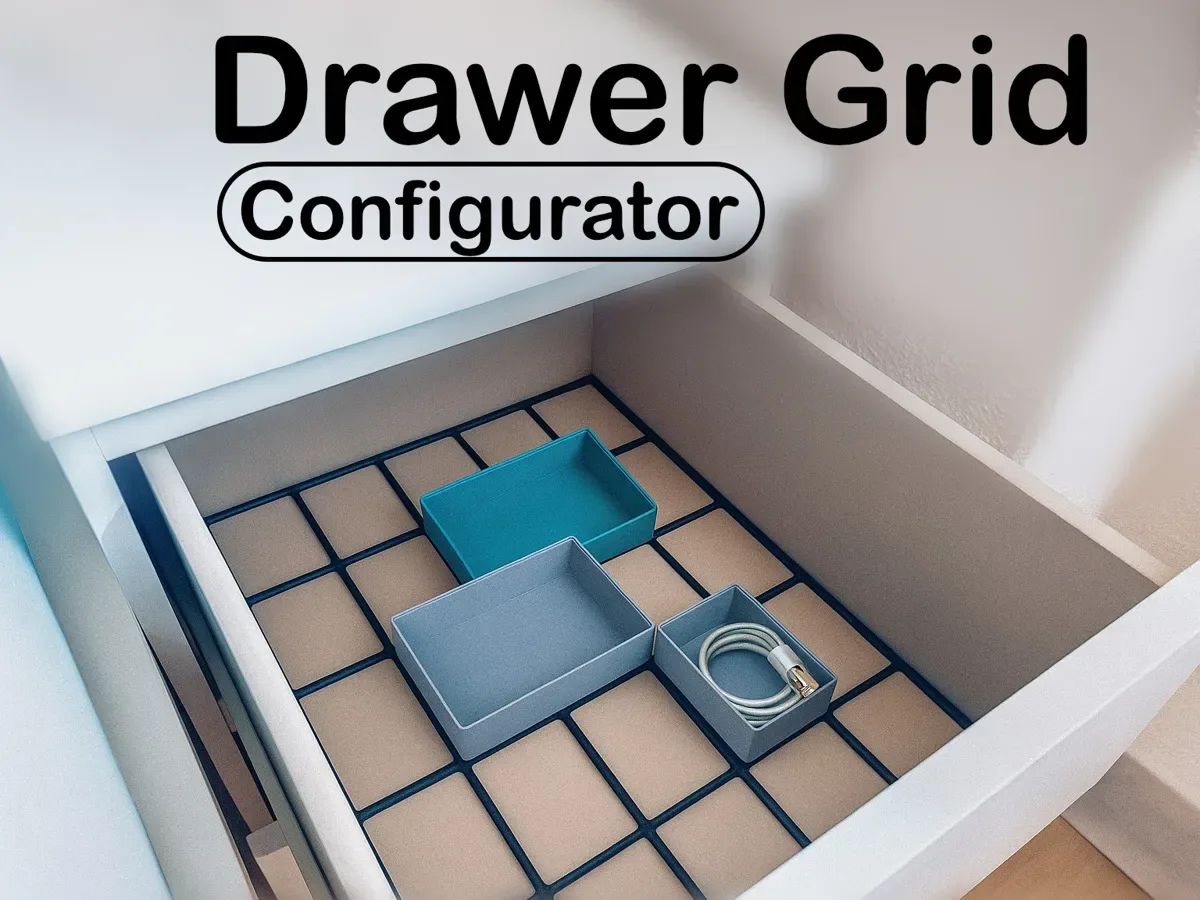

Boost Me (for free) Boost this model to support my work and help me keep creating useful, customizable designs for the community. Boost Configurator & Container Designer – Perfect Organization for Every Drawer With the Drawer Grid Configurator, you can create perfectly fitting drawer grids in just a few steps. Simply measure your drawer’s width and length, choose your desired segment size, and enter your 3D printer’s maximum build area. The tool automatically splits the grid into printable parts for easy, precise printing. Want to design custom boxes within your grid? Use the Container Designer. Decide how many cells each container should occupy in the X and Y directions, and customize color, style, and wall thickness. This gives you sturdy, personalized 3D-printed containers that fit seamlessly into your Gridfinity system. ⚠️ Important: The dimensions (drawer width, drawer length, GRID-X, and GRID-Y) must match exactly between both configurators—otherwise, the containers won’t fit properly. Printing tips: Download the file and open it in Bambu Slicer. Choose Split model → To objects and arrange everything as you like. If a stripe appears along the edge (this can happen with even segment numbers when the drawer size is an exact multiple of the print area), slightly reduce the printable area until the stripe disappears. 2.) 3.)
