Alchemist's Cube - Puzzle Combination Box

Designer

NeveroddoreveN

Designer relation

Followed

Kategori

Toys & Games

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

3dpuzzle alchemist alchemy box combination container cube cubepuzzle decoration decorative gift lock lockbox puzzle puzzles secret storagebox symbol

Beskrivelse

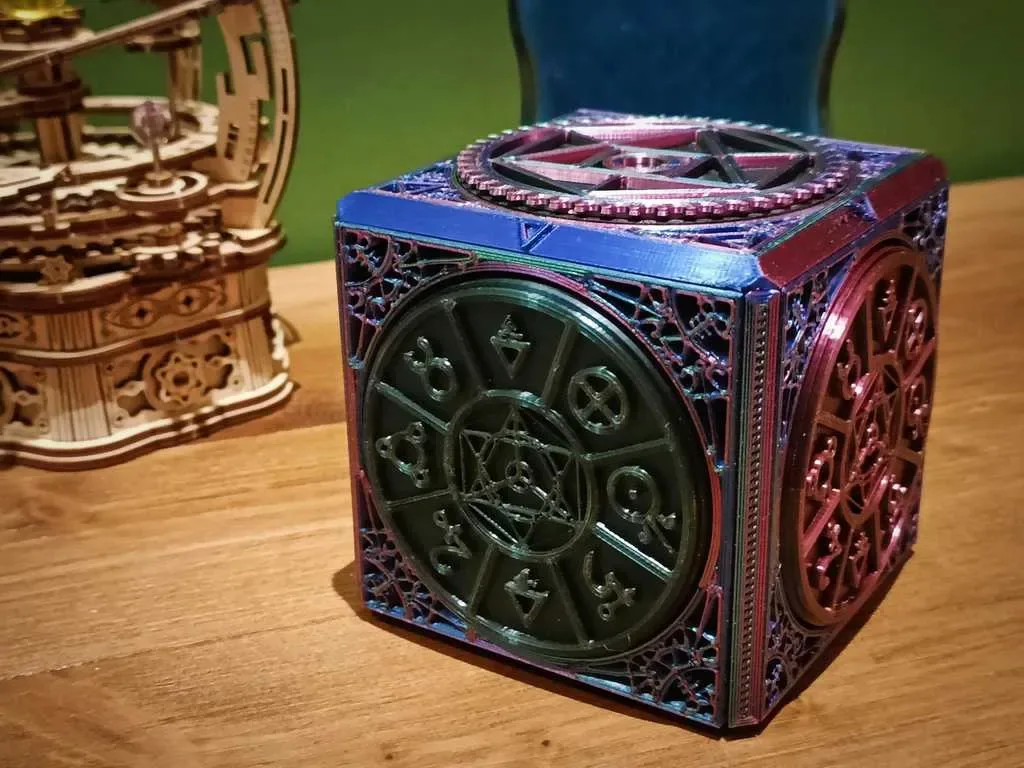

Membership Want to sell this in your shop? Check out my Commercial Membership for a licence to sell all my models! Join The Alchemist's Cube A combination lock box with mysterious appeal This puzzle box features 4 dials, each with 8 alchemic symbols. Line the correct symbols up to release the core, lifting the core out reveals a hidden compartment, perfect for storing your philosopher's stone. Demo video https://www.youtube.com/watch?v=Lefe1lm4fOM The core of the box is locked into place by 4 pegs that must slide through the keyways of the 4 inner wheels. Since the core can only move vertically, the inner wheels must be rotated so their keyways point upwards, only then can the core slide up and out. The keyways line up with one of the 8 symbols depicted on the outer dial, and you can choose which of the symbols you want, during assembly. The puzzle box is fairly robust and the pieces fit together well, with no slack. My prototype box had a problem in which the combination could be guessed by feel due to the slack in the model. This problem was fixed with a number of features that make guessing the combination by feel very difficult. As an additional precaution, I have included a false keyway on some of the inner wheels, to introduce uncertainty for anyone trying to open it by feel. In my opinion, the false keyways are not necessary as it is already difficult to guess by feel, but they are available if you want them :) ----Update---- 29/11/24 - Money Box Mod Two more STL files have been added that would allow the Alchemist's Cube to be used as a Money Box. The "Money_Box_Decoration.stl" can be used instead of "Core_decoration.stl" and "Money_Box_Core.stl" can be used instead of "Core.stl". Using these two money box files will result in an Alchemist's Cube with a slot in the top, allowing coins and notes to be passed into the cube. ----Update---- 27/11/2024 I have uploaded 3 new STL files. The files "Inner_Wheel_New.stl" and "Outer_Symbol_wheel_New.stl" are to help address the problems some folk have been having with getting these two parts to fit together. The interlocking gear-teeth are gone, and have been replaced by a simple octagon design with with fewer marrying faces, thus making tolerances more forgiving. The third file, "Outer_Blank_Symbol_Wheel_New.stl" is a symbol wheel with no symbols so folk can use it to add their own symbols. It too has the new octagon interface. ----Update---- 20/01/2023 I've added some optional edge trims to cover up the edges a bit. Print 4 edge trims for the vertical edges and one top trim for the top. The top trim features 4 arrows that denote where the chosen symbol should be orientated. There is also a smooth version if you do not want marker arrows. Printing All STL files should import into your slicer in the correct orientation. I printed the body, base, and core in PLA with a layer height of 0.25 mm and 30% infill. You will need supports for the Body and the Core, but they are minimal. The Base does not require supports. The rest of the parts: Inner Wheels, Outer Dials, and Decorations were printed using PLA with a layer height of 0.2 mm. The Outer dials were printed in duel-colour silk PLA and the decorative pieces were printed in tri-colour silk PLA. The Inner wheels and outer dials require supports as they have detail on both sides, but again, the supports are minimal. Print List to make a cube: 1x Body 1x Base 1x Core 1x Core Decoration 1x Top Decoration 1x Top Trim (optional - choose your preferred style) 4x Inner Wheel (choose any combination of the two types) 4x Outer Dial Wheel 4x Side Wall Decoration 4x Edge Trim (optional) Assembly The only extra tool you should need is some superglue. Start by inserting one of the inner wheels through one of the holes of the Body. Check to see if can rotate without too much resistance, but also doesn't wobble around. Put a dab of glue on the outer dial and press it into position against the teeth of the Inner Wheel. Be sure to line up the keyw
