Smart Filament Samples | NFC Color Swatches

Designer

Molodos

Designer relation

Followed

Kategori

3D Printer

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

box color filament test tpu sample abs PLA blank smart petg swatch testprint colorsample nfc asa molodos

Beskrivelse

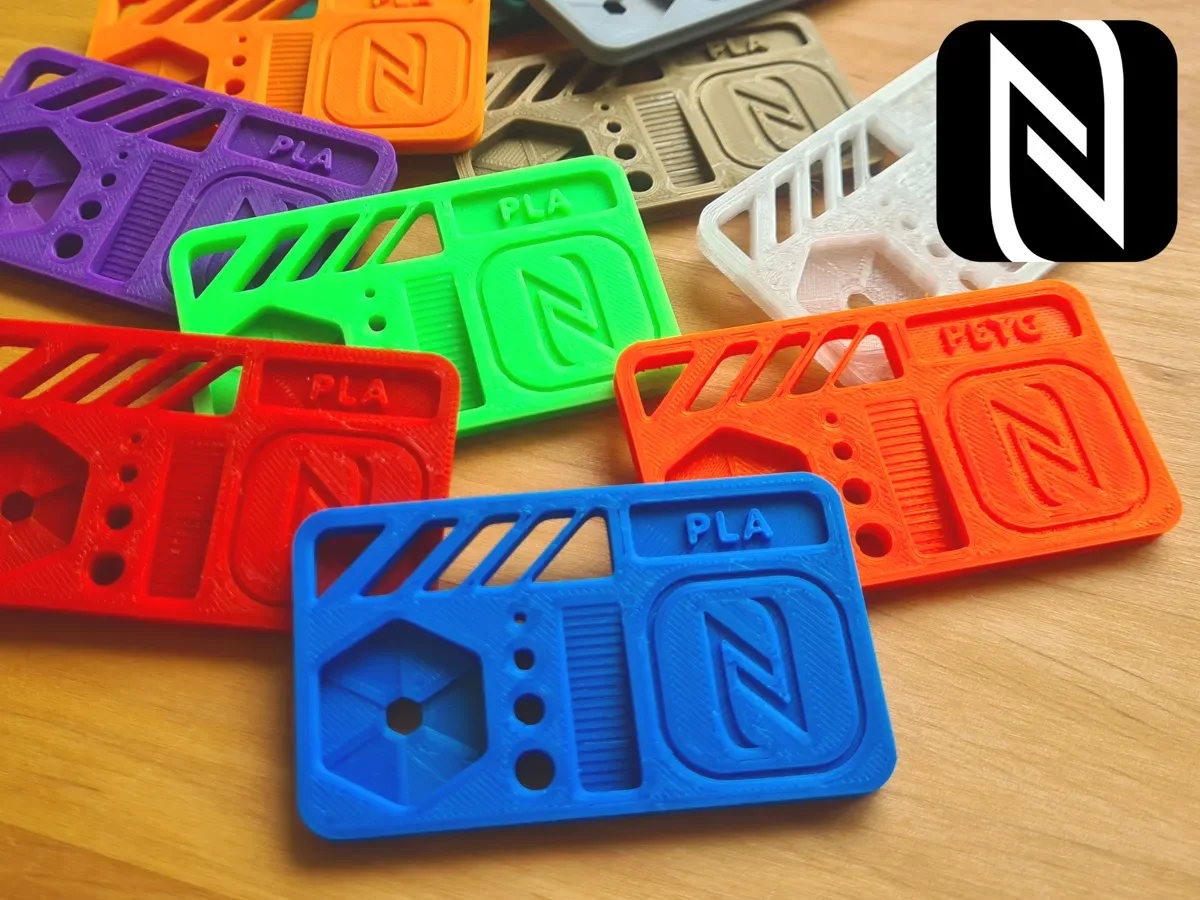

Boost Me (for free) You like the model? Consider using your boost tokens to support me for free! (or check out my Patreon for commercial seller licensing) Boost Box for multiple Samples: Check out here Version without NFC: Check out here This smart filament samples are designed with an integrated NFC chip for storing information about the filament. Features Thin walls test (3, 2, 1.5, 1mm) Material type display (Currently PLA, PETG, TPU, ASA, ABS and a blank version are available) Hole for a key ring Thickness/shine through test (0.2, 0.4, 0.6, 0.8, 1.0, 1.2mm) Round holes (2, 3, 4, 5mm diameter) Layer visibility test Integrated NFC chip for storing information about the filament Recommended print settings Layer Height: 0.2mm Sparse infill pattern: Cubic Sparse infill density: 25% The sum of top and bottom shell layers should be at least 6 No supports needed Printing and Assembly You will need some NFC chips in the right size. For enough storage space, I do recommend those NFC chips (affiliate link) Optionally, you can add some sort of key chain in the top right corner (I recommend this chain (affiliate link)) When preparing the print, make sure to insert a pause before the space for the NFC chip (when printing at 0.2mm layer height as recommended, the pause should be right before layer 12) When the printer pauses, insert an NFC tag After printing, you can optionally add some sort of key chain in the top right corner of the sample Use the app “NFCTools” to write your filament data to the NFC chip (add your parameters or just a link to the website) When having many samples, you might want to also consider to print my box for them (linked at the top of the description) You want to sell physical copies of my models? Check out my attractive commercial seller licensing via a membership over on Patreon!
