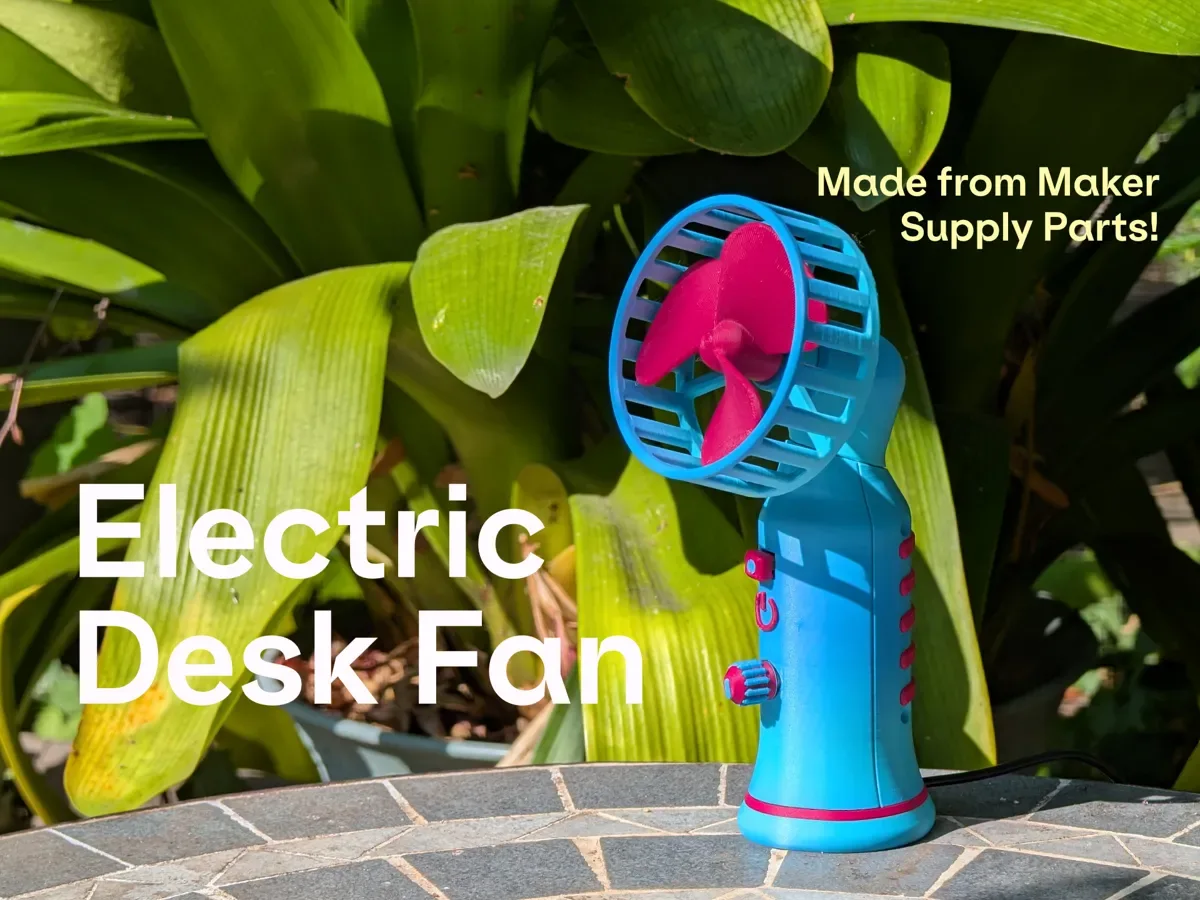

Electric Desk Fan

Designer

ModularMapping

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

desk fan makersupply makersupplykit maker supply kit dcmotor dc motor power board potentiometer potentiometerknob

Beskrivelse

Feeling the heat? Say goodbye to sweaty summer days with this mighty mini fan! Small in size but big on breeze, it’s here to blow your problems away—literally. Whether you're at your desk, in the workshop, or just pretending to be productive, this fan's got your back. Best of all? It's proudly made out of maker supplies! 🛠️ Assembly Instructions for the Summer Fan Print All Parts Ensure all individual components included in the provided .3mf file are 3D printed. Fan Assembly Screw the motor into the fan cover. Route the fan's cable through the angled fan holder. Attach the fan cover to the angled fan holder using an M2x4mm screw. Electronics Installation Connect all necessary components to the power board: Attach the USB power input and the designated power button for the channel — these are aligned on opposite sides of the power board. Connect the fan and the potentiometer (poti) to the first output channel and its corresponding control channel. Power on the device to test if all components are functioning correctly. Mounting Components Secure the power board to the main back part using two 2x8mm self-tapping screws. Mount the button and potentiometer to the main front part. Final Assembly Lay the bottom part flat and align the USB cable in its designated slot. Position the back part onto the bottom part. Insert the angled fan holder into place. Attach the front part on top, aligning all parts correctly. Secure the front and back parts together using four 2x16mm self-tapping screws. Finishing Touches Attach the button cap and the potentiometer knob. Hope you enjoyed your build and now get some refreshing air :D If you like the model id love to see a picture of your version! If you want to support me further or want to sell all my models commercially, check out my PATREON! Membership You can now subscribe to my Membership program to support me or to get access to commercial use of my models! Thanks for all your help! Join Boost Me (for free) If you like this model, consider giving me a boost! This really helps putting this much work into the designs ;) Boost Also have a look at my lights, some are 100% 3D printable! Orbiflora - A 100% 3D printable Lamp! Florahedron V2 - A Fully 3D printable Lamp Prisma Petal - Bambu Lab LED Kit Water Lily Lamp Shade PrismaPetal V2 - A Fully 3D Printed Lamp Grid Light Icosaeder Christmas Light
