Hidden under desk drawer

Designer

MIHAI_T

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

drawer desk desktop underdesk storage mechanism

Beskrivelse

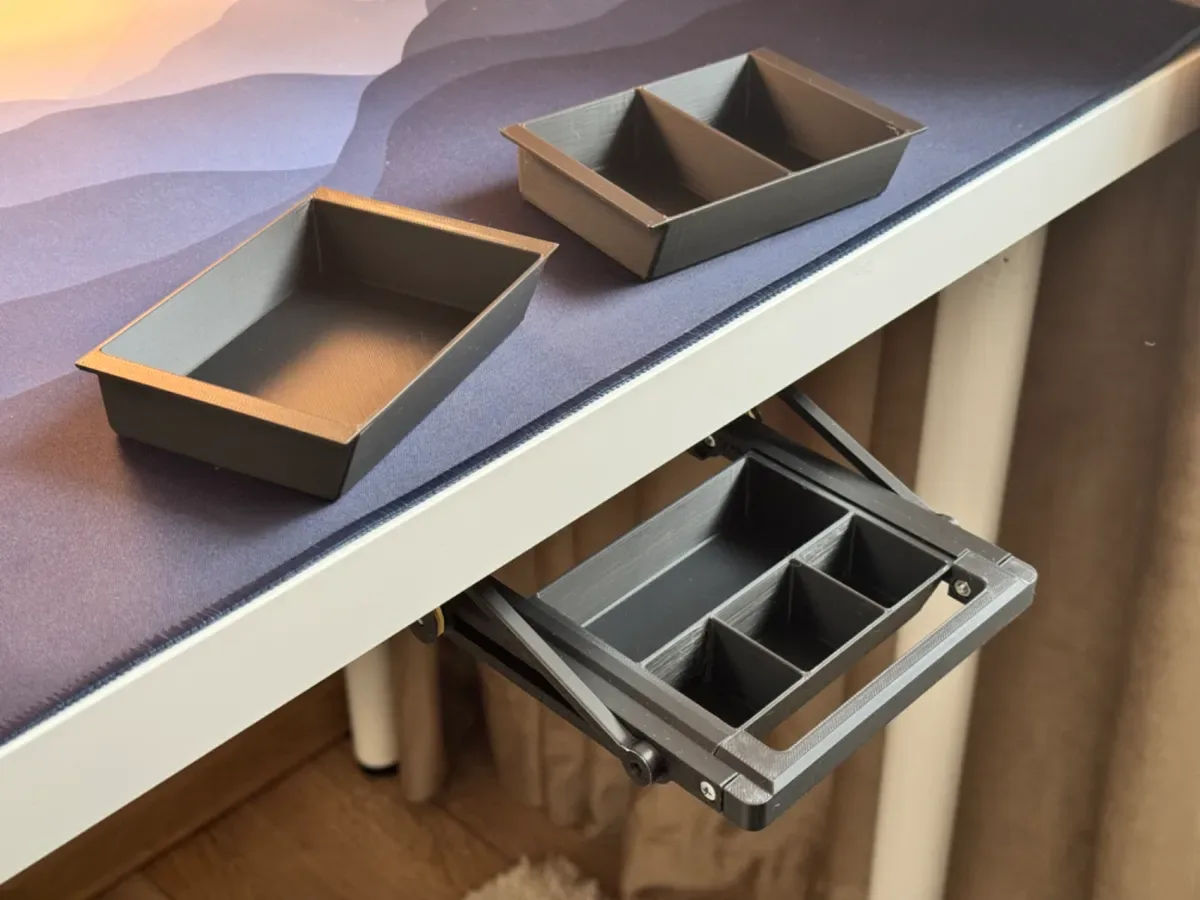

Cool under desk drawer with pull mechanism designed to store small parts under your desk. You can add as many drawers under your desk as you want. Membership Thanks for your support;3 Join 1) Key features: Fast assembly Functional design Stays hidden Easy handle Common materials 2)List of parts: x2 parts (Left and Right) to be screwed in bottom of table x2 parts (Left and Right) to hold tthe tray x4 parts to assembly parts above together x4 parts of sliders 5. x1 handle part 5. x6 M3 x 16 Screws 6. x2 M3 Nuts 7. x2 Rubber bands for sliding mechanism 3) Assembly guide First, download and print all the parts. Make sure you have the parts for the right and left side of the drawer. Assemble the sliding parts with the help of screw m3. c. Assemble the suspended parts using the handle and m3 screws and nuts. d. Insert the joints on both sides of the mechanism. e. Thread the mechanism into the bottom of the table with the help of 2 wood screws. f. After correctly fixing the mechanism, extract the handle and insert the tray that you like. g. Adjust the tension of the rubber bands according to your needs. The drawer must behave rigidly under the action of weights that you want to store. 4) Congrats for your work. Please ask for issues and suggestions. If you like this original design please support me =3. Boost Me (for free) Boost
