Mecha Tank I

Designer

MIHAI_T

Designer relation

Ingen

Kategori

Toys & Games

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

tank rolling fidget assembly mecha moving gun toy parts

Beskrivelse

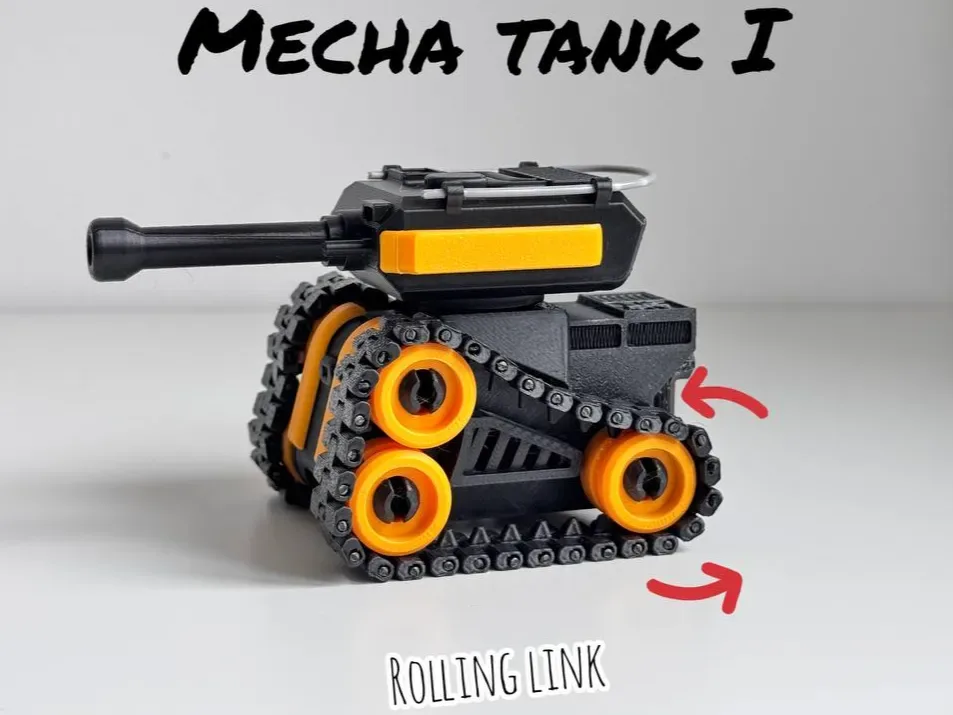

Description A cool Mecha Tank I are ready be assembled in minutes. This tank has movable links and turret. Based on snap assembly. !!! NEW UPDATE ---→ MECH TANK II Boost Me (for free) Boost List of parts x2 Tracks that consist from 31 joints each x2 chassis x6 wheels x2 pins for chassis and body x2 inserts for chassis and body tank body turret turret wire x2 turret inserts snap connector Assembly steps Prepare 15mm length wires from your filament(1.75mm) for track assembly. Each track have 31 links. Insert wires in each link. Prepare insert wheels[3] in each chassis[2]. Wheels should easily rotating. Close the track o each chassis with wire pin. Insert pins[4] into the chassis. Connect chassis with body. Insert frontal pins[5] to connect body and chassis. !Pins for chassis and body have L and R side. Insert the both sides. Prepare the turret. Insert filament wire on top. Add turret insertions. Alling body and turret and insert snap connector[1] from the back. Tank is ready to play.
