Pen adapter for H2 / A2 series - Customizable

Designer

mgm86

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

pen adapter PEN Pencil pencil adapter pen adapter h2d pen adapter h2s pen adapter cutting modul pen adapter cutting adapter stabilo stabilo point 88 H2C Vortex h2c cutting cutting module a2

Beskrivelse

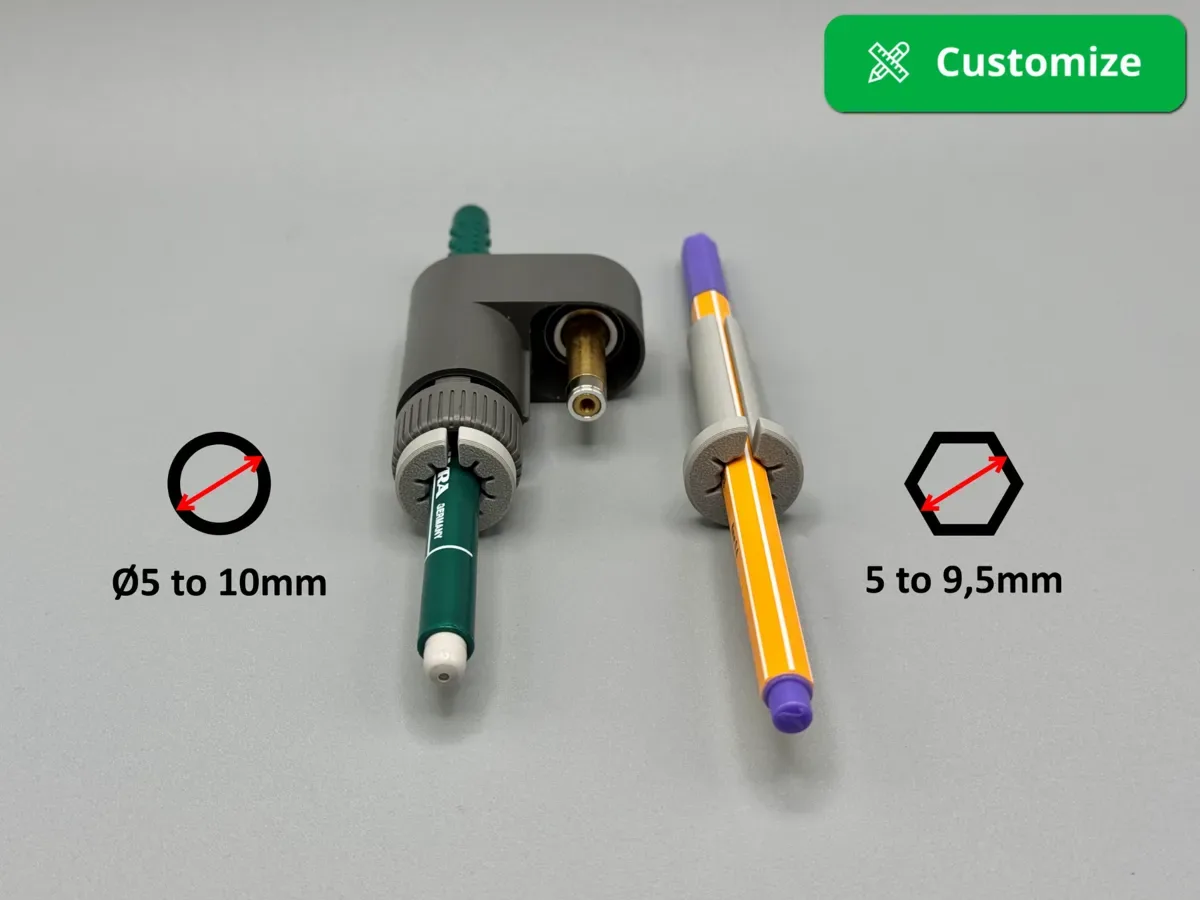

Boost Me (for free) Thanks for your support! Boost This is a customizable pen adapter for the H2D / H2S / H2C cutting modul. The pen holder can normally hold pens measuring 10.5 to 12.5 mm. With this adapter, you can hold pens with a diameter of Ø5 to Ø10 mm or, in the case of hexagonal pens, with a width of 5 to 9.5 mm. There are 2 standard print profiles. - Round: Ø9.2 mm for Ø9 mm pens - Hexagonal: 7.8 mm wide for Stabilo Point 88 If you need a different size, click on the “Customize” button and enter your pen size +0.1 or +0.2 mm. Print settings: Can be printed with standard settings. Filament: Successfully tested with PLA Basic. ________________________ Also take a look at my pen aligner. As an easier alternative to the standard cap: LINK
