Door Bumper - Customizable Length

Designer

Maxx_Design

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

door knob stop bumper stopper TPU

Beskrivelse

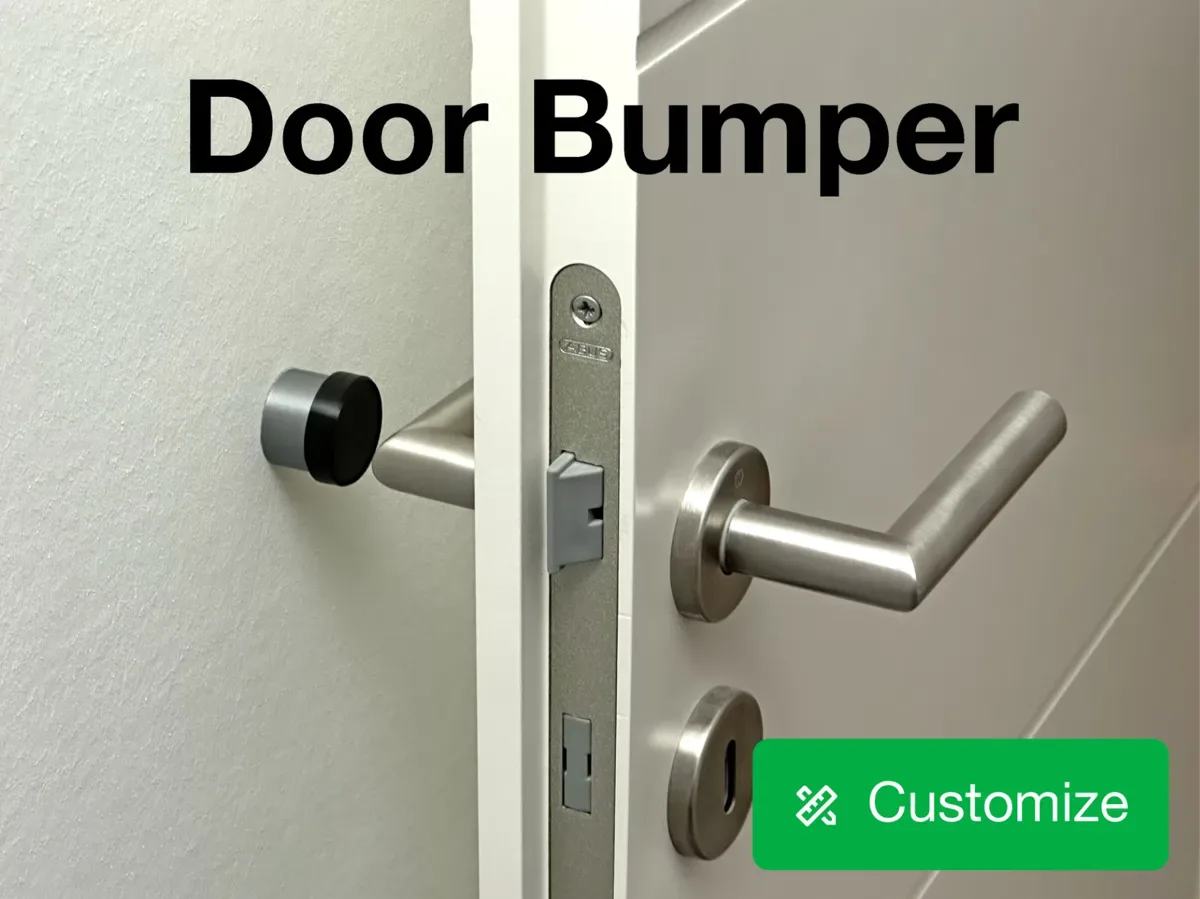

Boost Me (for free) If you enjoy my designs, you can support my work with a boost! Boost A height-adjustable door bumper that quietly absorbs every swing, shielding your walls, radiators, and furniture from dents and scuffs. The bumper consists of a bracket (printed from PLA or another stiff material) and a cap that needs to be printed with TPU. I recommend using TPU 90A for best results; 95A will work as well, but it will be a little harder. The bracket can be customized in length to perfectly fit an existing gap or protect fixtures like furniture or radiators. Please note that the total length already includes the 5 mm thickness of the TPU cap. I already added premade versions with lengths of 15, 25, 50, 75 and 100mm, which are ready to print in the profile. For the custom version: Please increase the wall count to 3 and bottom layers to 5 to make sure the bracket is printed massive. There is also an optional mounting plate, which will add 1 mm to the total length if you decide to use it. The bracket features a 6 mm hole for screw mounting, but you can also attach it with adhesive if you prefer. Once the bracket is secured, simply snap the TPU cap into place. Membership Get a commercial license for my designs by becoming an Authorized Seller! Join
