Ferrowave

Designer

makarov

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

radio bluetooth ferro streaming DIY music music player spotify youtube speaker speakers

Beskrivelse

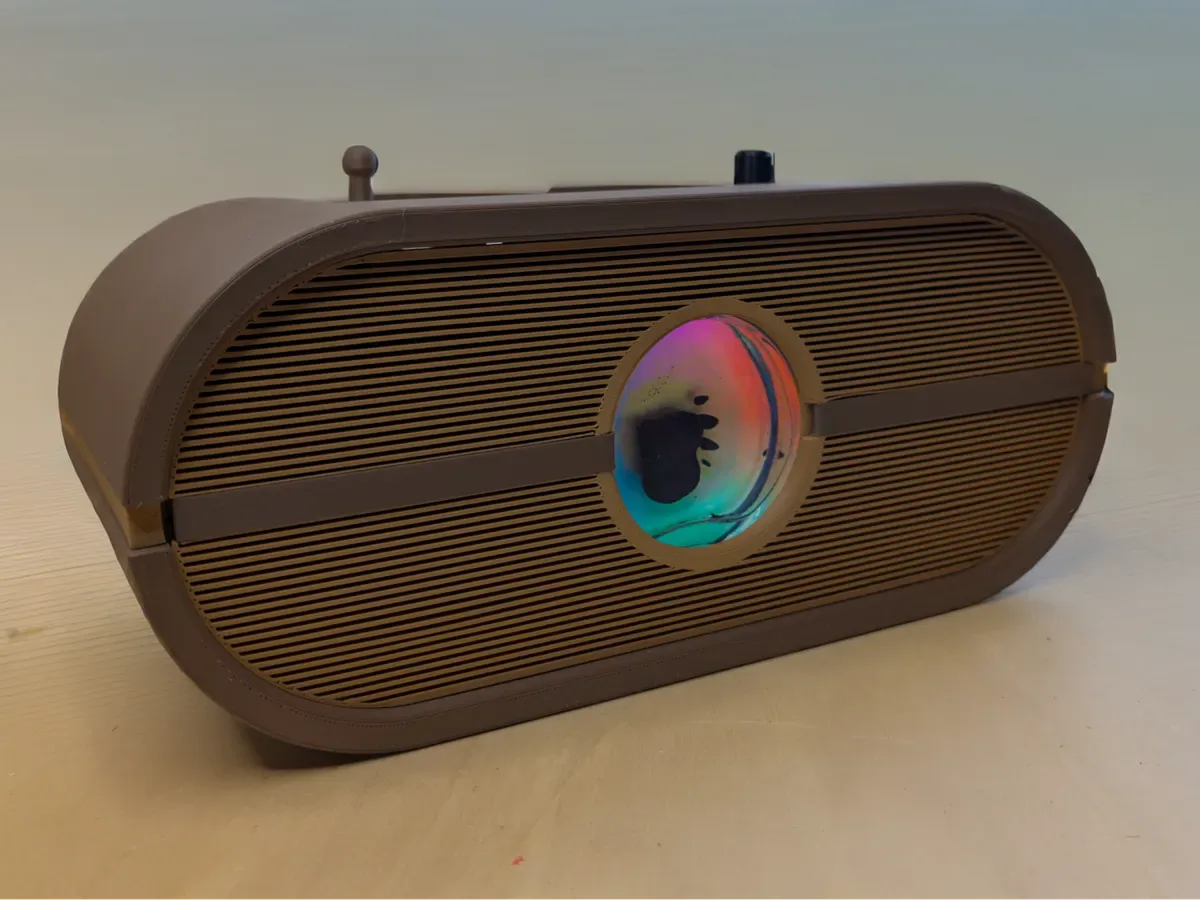

FerroWave - 3D Printable Enclosure Audio-reactive ferrofluid visualizer that turns music into mesmerizing magnetic art! What is FerroWave? FerroWave is an open-source ferrofluid display that dances to your music. Connect via Bluetooth or AUX, and watch as magnetic fluid creates hypnotic patterns synchronized with beats, bass, and rhythm. What's Included Complete enclosure system for housing all FerroWave components: STEP Files (Editable) Enclosure top & bottom Magnet mount LED ring holder Battery bracket Ferrofluid container holder Full assembly reference STL Files (Print-Ready) All parts optimized for FDM printing with minimal supports Key Features 🎵 Dual Audio Input - Bluetooth A2DP + 3.5mm AUX 🧲 8 Magnet Modes - From gentle waves to aggressive spikes 💡 10 LED Effects - Synchronized light shows 🎮 6 Physical Buttons - Standalone control 🔋 Battery Powered - 4x18650 cells, 1-1.5 hour runtime 🎚️ Advanced Tuning - Serial commands for fine control Electronics Required ESP32-A1S Audio Kit (ES8388 codec) 4x18650 battery holder with 5V output MOSFET trigger module 5V electromagnet WS2812B LED ring (24 LEDs) Breadboard power module Full BOM, wiring guide, and firmware available on GitHub! github.com/matoslav/FerroWave Print Settings Material: PLA, PETG, or ABS Layer Height: 0.2mm (0.15mm for better quality) Infill: 20% Supports: Required for top enclosure only Print Time: ~12-18 hours total (all parts) Build Difficulty ⭐⭐⭐ Intermediate Basic soldering helpful but optional Arduino IDE required for firmware upload Wiring skills needed Estimated build time: 2-4 hours Complete Documentation This is part of the fully open-source FerroWave project: 📦 GitHub Repository: github.com/matoslav/FerroWave Complete Arduino source code Detailed wiring diagrams Step-by-step build manual Troubleshooting guide Serial command reference 🎓 MIT License - Modify, remix, and share freely! About This Project FerroWave was successfully crowdfunded by 668 backers on MakerWorld. Thank you to the amazing community who made this possible! Created by: Makarov87 License: MIT Open Source Version: 2.0 (Battery Edition) Ready to Build? Download and print all STL files Order electronics from the BOM Follow the wiring guide on GitHub Upload firmware and enjoy! Join 668+ makers who brought ferrofluid to life! 🧲✨ Part of the FerroWave open-source project - where music meets magnetic art.
