THE TEST DISC | Z-Offset Calibration Disc

Designer

K2_Kevin

Designer relation

Followed

Kategori

3D Printer

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

z-offset test disc bedlevel

Beskrivelse

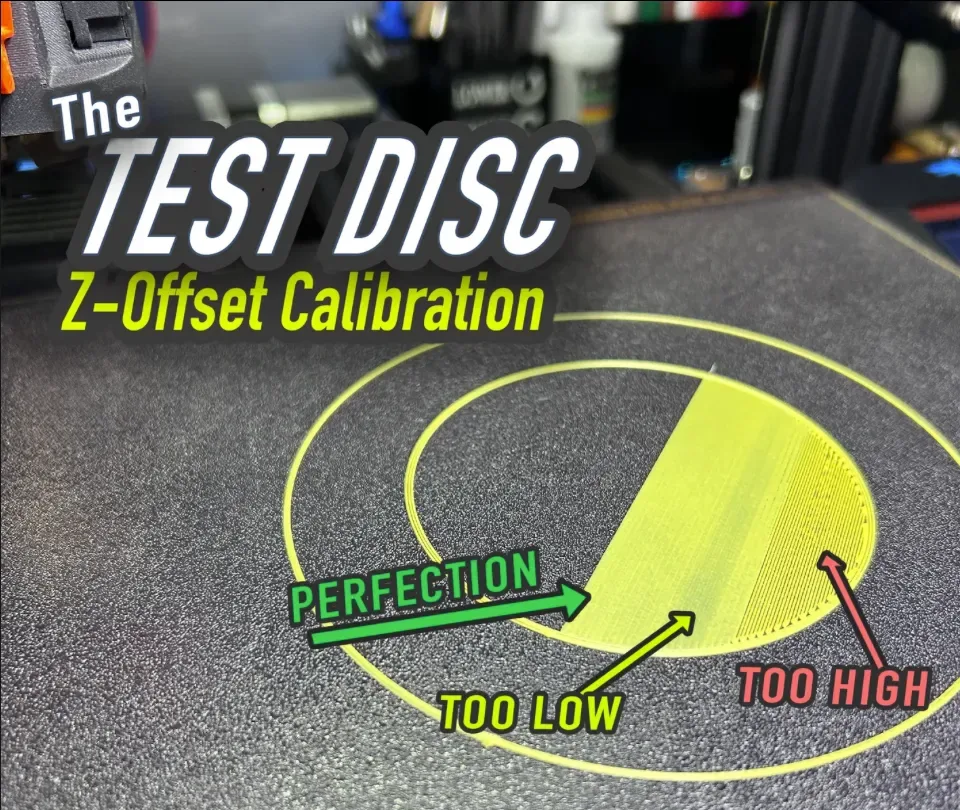

Thank you so much for your Downloads, Like, Boosts! Become a Member at any tier & direct message me with your requests! Don't forget to Follow! THE TEST DISC The Bambu Printers do not have an easy Z-Offset baby steping interface. If you notice your prints do not have a perfectly smooth first/bottom layer (you see layer lines), you can change the z-offset in Bambu Studio to give it more squish. Goto to Printer Settings | Machine G-code |Machine start G-code. You will need to scroll down until you find the section for z-offset on textured build plate. Change the value one at a time (from the default -0.04 to -0.05 etc.) and retest with a Test Disc. change this to a higher negitive number brings the bed closer to the nozzle. WARNING if you change this number incorrectly, you could cause damage to your bed, nozzle or other parts. Do this at your own risk! BAMBU X1C Example Above: I started at the default z-offset = -0.04, using this calibration disc, my z-offset ended up at -0.10 (perfect smooth 1st. Layer, if it was to close, backoff to -0.09). Your Z-offset results may be different. This process can also be done for other plates as well, you notice I also changed the “Cool Plate”. Can be found in the middle of Machine gcode - Example: ;========== For Textured PEI Plate, Cool Plate ========================================= ;curr_bed_type={curr_bed_type} {if curr_bed_type=="Textured PEI Plate"} G29.1 Z{-0.07} ; <-------for Textured PEI Plate {endif} {if curr_bed_type=="High Temp Plate"} G29.1 Z{-0.01} ; <-------for High Temp Smooth Plate {endif} {if curr_bed_type=="Cool Plate"} G29.1 Z{-0.01} ; <-------for Cool Plate {endif} {if curr_bed_type=="Engineering Plate"} G29.1 Z{-0.02} ; <-------for Engineering Plate {endif} ❤ Dont forget to Like and post your results! ❤ UPDATE: By request, I've added the Z-disc “collectors cup” save those smooth disc's like trophy swatches. Other models waiting to be discovered… Boost Me (for free) Thank you so much for Rating, Following and the BOOSTS! Boost Membership Want to request a model or design change? You’ll need to be a member (any tier works!). Join up and send me a DM — so grateful for your support ❤️ Join
