Hotend / Toolhead PTFE Guide

Designer

K2_Kevin

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

ptfe guide PTFE guide toolhead hotend bambu bambulab x1c p1s p1p k2 extruder bracket ams error fix stop ptfe rubbing rubbing

Beskrivelse

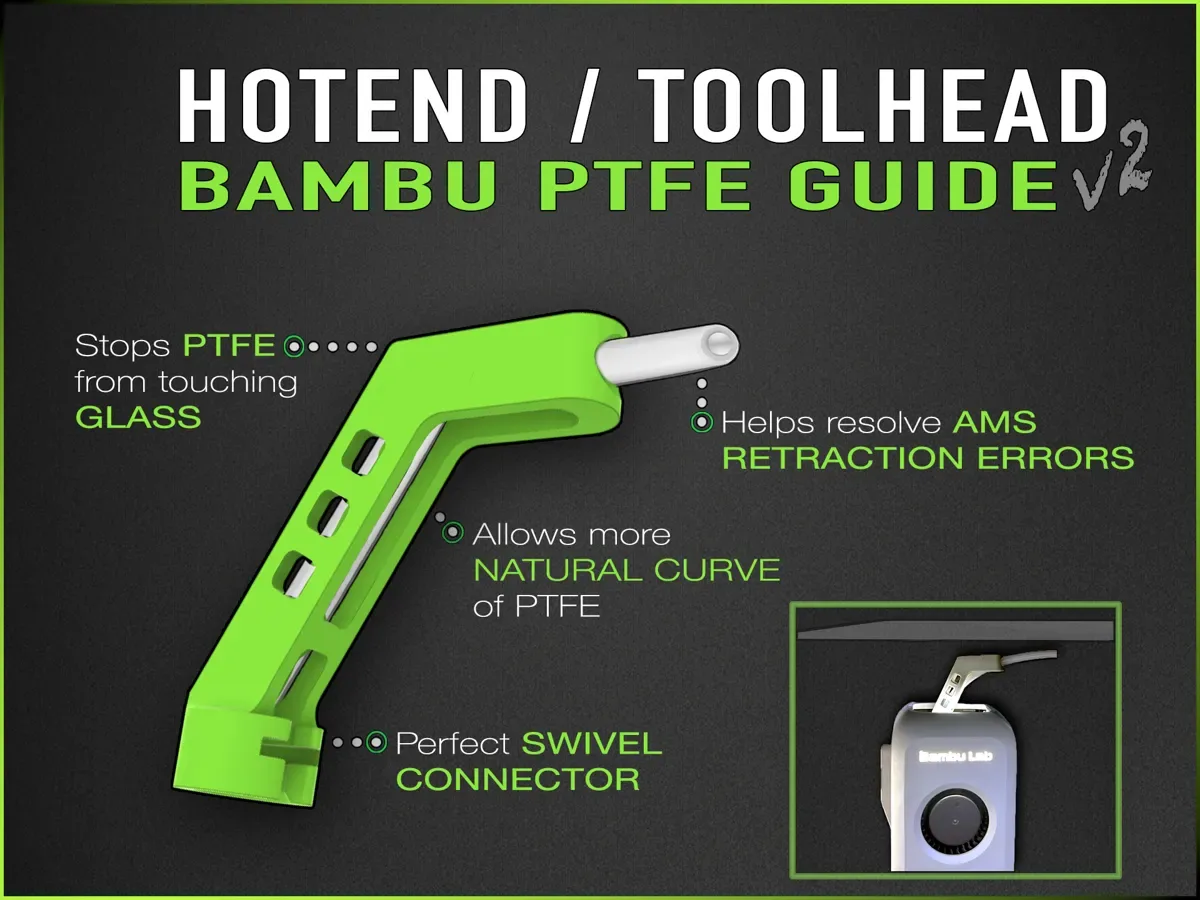

Thank you so much for your Downloads, Like, Boosts! Become a Member at any tier & direct message me with your requests! Don't forget to Follow! Hotend / ToolHead PTFE Guide v2 The PTFE guide is positioned so your PTFE tube no longer rubs the top glass. The perfectly designed connector, rotates smoothly and follows the motion of your Bambu Hotend. The natural curve, without restriction to the PTFE tube helps reduce AMS Filament retraction errors. Fast & Easy print in all materials No supports required Perfect smooth fit on PTFE connector Rotates freely Helps resolve AMS Filament Retraction problems Prevents PTFE tube from touching glass top Provides a natural curve to the PTFE tube INSTALLATION: Feed PTFE tube through the printed guide, using your other hand, push the curve in PTFE to help slide tube through the bottom of the guide. Slide the printed guide up the PTFE, giving you more room to push PTFE tube back onto hotend. Attach PTFE tube back on the Hotend connector. Lower Guide onto black PTFE hotend connector. Using mild force, "wiggle it, just a little bit"," at an angle, to snap the printed guide onto the black PTFE hotend connector. It takes some force. REMOVAL: I rotate guide so the PTFE is pointing forward, while pulling up/bending the guide forward. Be prepared… this printed PTFE guide might break or bend at the bottom during removal, be ready to print another. NOTE: I recommend using PETG or ABS/ASA that can handle the higher temperatures of the print chamber. NEW LABELED VERSION! https://makerworld.com/en/models/478965#profileId-390252 Checkout some of my other models… Rugged Drawer System NEW XXL mini version available! (Printable on A1 mini bed) AMS Spool Weight Hex Scraper Lube Tool Other models waiting to be discovered… Boost Me (for free) Thank you so much for Rating, Following and the BOOSTS! Boost Membership Want to request a model or design change? You’ll need to be a member (any tier works!). Join up and send me a DM — so grateful for your support ❤️ Join
