H2D - X1C - P1S Calibration Tests

Designer

K2_Kevin

Designer relation

Followed

Kategori

3D Printer

Licens

Creative Commons Attribution NoDerivatives Creative Commons Attribution-Noncommercial-NoDerivatives

$ ↺

Attribution påkrævet; modificerede/afledte versioner må ikke deles.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

h2d bambu h2d calibration test nozzle dual nozzle z-offset bed mesh flow extrusion test model h2d test pattern x1c p1s ams x1c calibration p1s calibration tests dual nozzle interface test dual

Beskrivelse

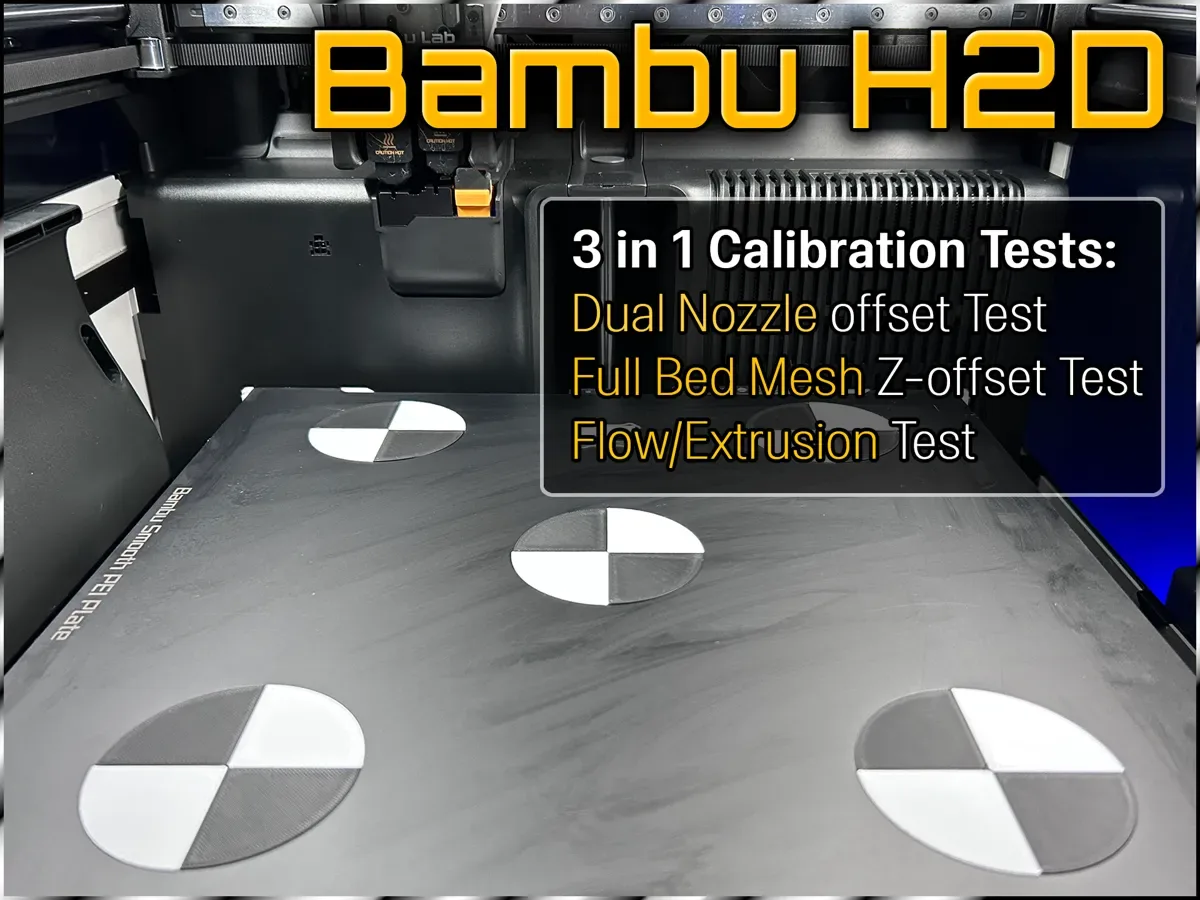

Thank you so much for your Downloads, Like, Boosts! Become a Member at any tier & direct message me with your requests! Don't forget to Follow! Bambu H2D Calibration Test (3 in 1) If you're having print issues with your Bambu H2D (also works with X1C/P1S), running this quick test can help rule out your printer from being the cause. If it's not the printer, it's your filament, filament profile, printer profile or even the model. Don't forget to Follow! Thank you so much for your Downloads, Likes and BOOSTS! What valuable insights does this calibration test pattern provide? Determines your dual nozzle calibrations are working properly. (Dual Nozzle Interface Test) Check all patterns to be sure the colors do NOT overlap or bleed into each other. If you notice issues, complete the full nozzle calibrations from printers on-screen menu. Checks the center and all four corners for perfect z-offset (Bed Mesh) on each nozzle. You can examine the bottom of each circle for a nice smooth surface. Gaps in lines or uneven "squish' can show poor bed leveling. You see problems with first layers. This can be caused by poor bed mesh (run full bed calibration), dirty build plate (also check underneath for debris on bed), filament issues (calibrate filament settings, dry filament if brittle), and more… Top layer should be smooth, does not have to be perfect, but should be very smooth. A rough top surface can generally be due to filament and print profile. Doing a flow calibration for the filament you are using can improve overall print quality and top layers. So of the default profiles are to fast and over extrude filament, lowering the flow (example 0.95). H2D PRINT INSTRUCTIONS Place one color for each nozzle into H2D printer. Can use AMS on one/both or AMS and manual feed. Choose Custom mode for slice method. Slicing Results: Match the filaments you choose to use with the nozzle. You can move the colors to the correct nozzle, but it realy just matters that each nozzle has one color. Print: Verify settings below Other models waiting to be discovered… Boost Me (for free) Thank you so much for Rating, Following and the BOOSTS! Boost Membership Want to request a model or design change? You’ll need to be a member (any tier works!). Join up and send me a DM — so grateful for your support ❤️ Join
