CYMW Color Mixing Test 10 Colors with 4 Filaments

Designer

DjangoCashflow

Designer relation

Followed

Kategori

3D Printer

Licens

Creative Commons Attribution

$ ↺

Attribution påkrævet.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

test testprint multicolor mixing full spectrum fullcolor mixing color colormixing

Beskrivelse

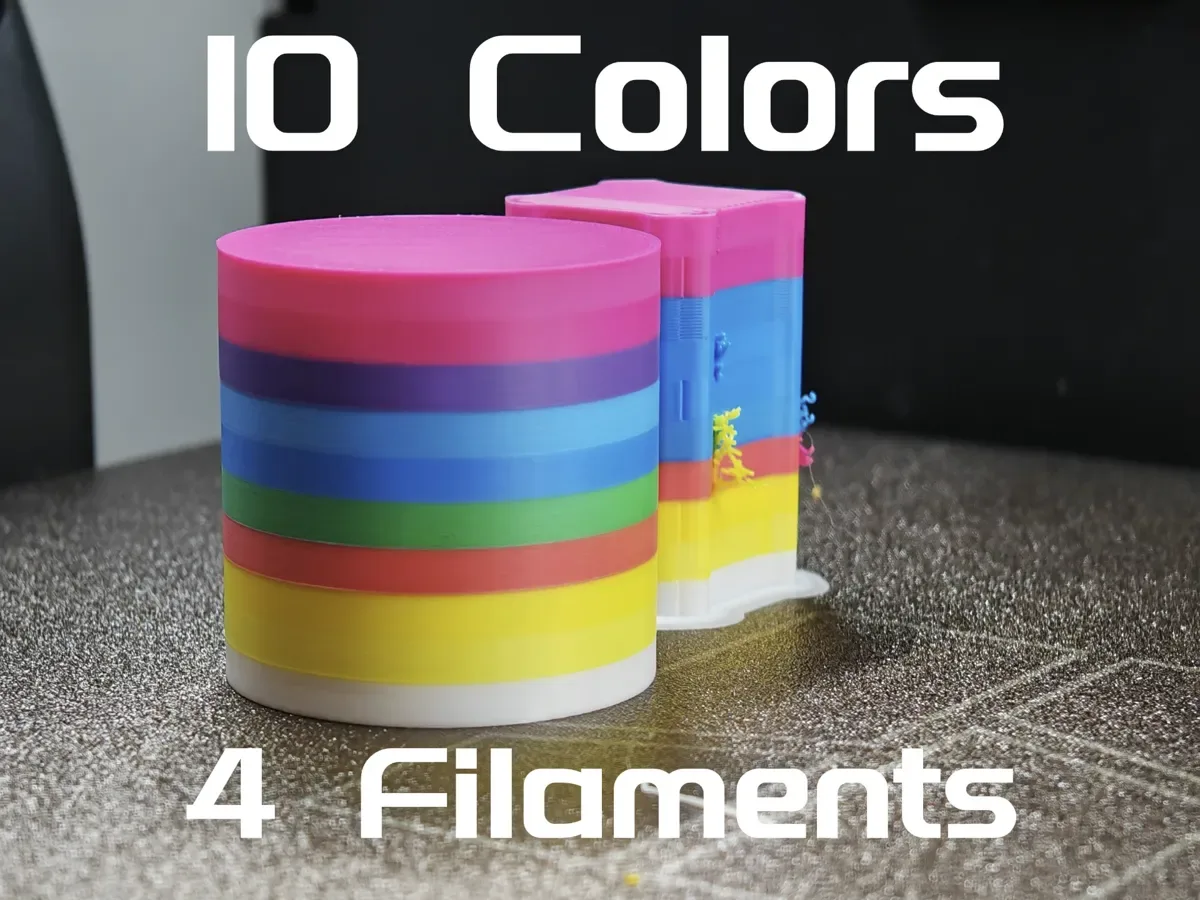

This model is a simple but powerful color mixing test print designed to show what is possible with just 4 base colors: Cyan, Yellow, Magenta, and White (CYMW). Using alternating filament layers, this print creates 10 solid-looking colors from only those 4 inputs. For example, cyan + yellow produces a clean green, letting you preview mixed-color results without needing a huge number of spools. I created this model to help bring more attention to the FullSpectrum color-mixing workflow and make it easier for more people to try. The goal is to let anyone test the concept directly in Bambu Studio or the Bambu Handy app without having to dig deep into a special slicer fork first. How it works The model is split into many very thin individual layers at 0.1 mm layer height. By alternating two colors back and forth layer-by-layer, the print produces a visually solid mixed color instead of obvious stripes. This makes it a great demo piece for testing color blending behavior on real prints. Why this model exists This test print was made to help showcase and promote the idea behind: OrcaSlicer FullSpectrum https://github.com/ratdoux/OrcaSlicer-FullSpectrum The more people who see what this approach can do, the better the chance that something similar may eventually be implemented natively in Bambu Studio. Recommended setup Best results with 0.1 mm layer height Works as an easy demo print for testing mixed-color output Dual-nozzle printers such as the H2C and H2D are highly recommended to reduce filament waste and cut down on unnecessary color changes Perfect for Testing CYMW mixing behavior Showing off color blending possibilities Comparing mixed colors side by side Demonstrating FullSpectrum-style printing to others If this model helps you, please consider sharing your results and helping spread awareness of the FullSpectrum project.
