Philips Hue Sensor Bracket for wall inserts

Designer

3DPrintCraft3D

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Creative Commons Attribution NoDerivatives Creative Commons Attribution-Noncommercial-NoDerivatives

$ ↺

Attribution påkrævet; modificerede/afledte versioner må ikke deles.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

philips hue philips huedimmer hue

Beskrivelse

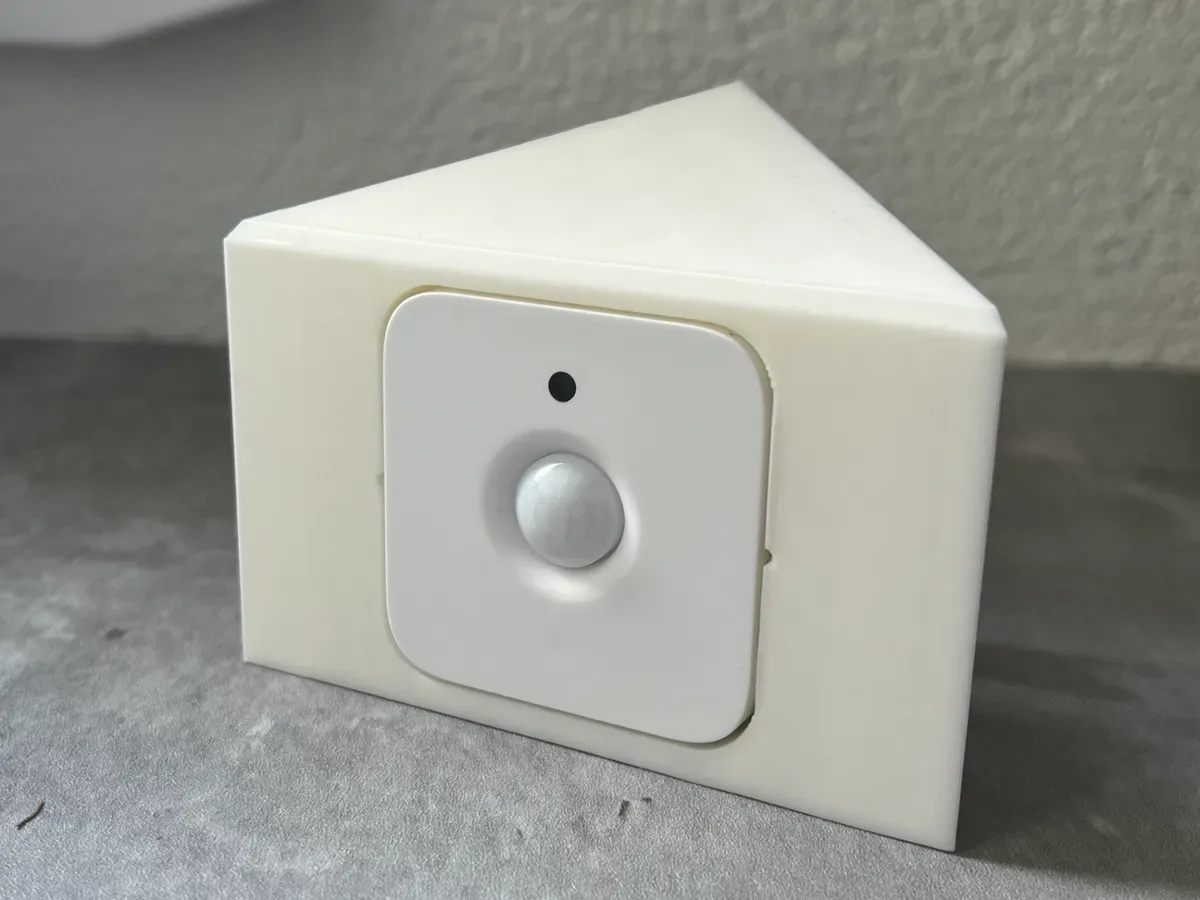

Philips Hue Dimmer Modules - Corner and Wall inserts Want to discreetly mount your Philips Hue sensor in a wall, drywall, plasterboard or wood panel? No problem. My handy little adapter will fit the sensor snuggly and hide the edges of your cut-out or the new version which is also suited for corner mounting. Featuring: A hole at the rear to mount a 8x3mm magnet (Although it's not required as the sensor fits snug). A smaller hole at the rear of the brack to push the sensor out with a thin tool. Perfect flush, snug fit of the sensor in the holder. Four Options: Build Plate 1 - Wall/Drywall housing insert, to insert your hue sensor flush to a wall. The cutout should be about 62x62mm and 28mm deep. Build Plate 2 - Wall cutout cover only. Build Plate 3 - Corner module with flat top Build Plate 4 - Corner module with a angled top (can be mounted upside down to have the angle at the bottom. Sample is printed on the Bambu X1C using white PLA on a smooth PEI board for a perfect finish. Should do well on the texture plate too. For a commercial licence please contact me. Small one-time fee and sell as much as you like. Please see pictures for examples.
