Self Levelling Guitar Wall Hanger

Designer

Zurlingo3D

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

wall hanger guitar guitar holder guitarhanger wall wallhook wall hook self levelling zurlingo-3d instrument

Beskrivelse

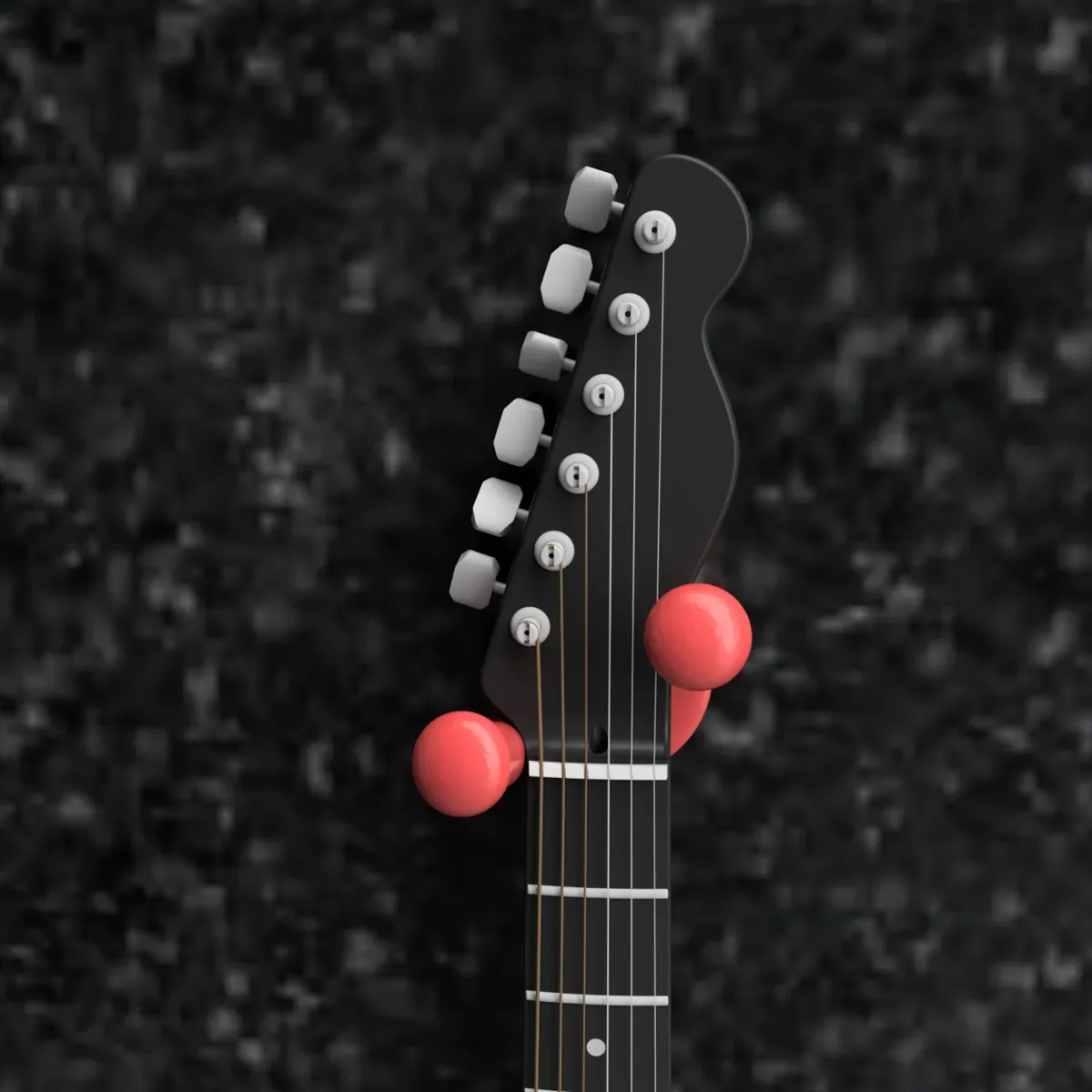

A self levelling wall hanger for guitars, basses and other stringed instruments. Simple to mount, stylish and super sturdy, this is the perfect solution to display your instruments. It is a universal fit, and should work with 99% of headstocks spanning most manufacturers. Installation: Fix the 'Wall plate' to the wall using two 4mm diameter screws. Line the centre of the 'Hook' piece up, with the centre of the 'wall plate' Push the 'Spindle' through both holes until it sits firmly against the wall Use two 4mm diameter x 16mm length screws (other sizes will fit if close enough) to secure the 'spindle' to the 'wall plate' Tip: If the hook doesn't spin freely after assembly, then back off the 2 side screws in the wall plate ¼ of a turn each. Also, if you assemble the hanger and spin the hook in your hands, you can ‘wear it in’ for a few minutes to get a really smooth feel. Print Settings: Really easy to print. 5 perimeters 20%+ gyroid infill 5 Top and bottom layers Layer height is up to you. Any questions just leave a comment below and I'll get back to you asap. Thank for looking :) - Don't forget to post your makes and review your experience
